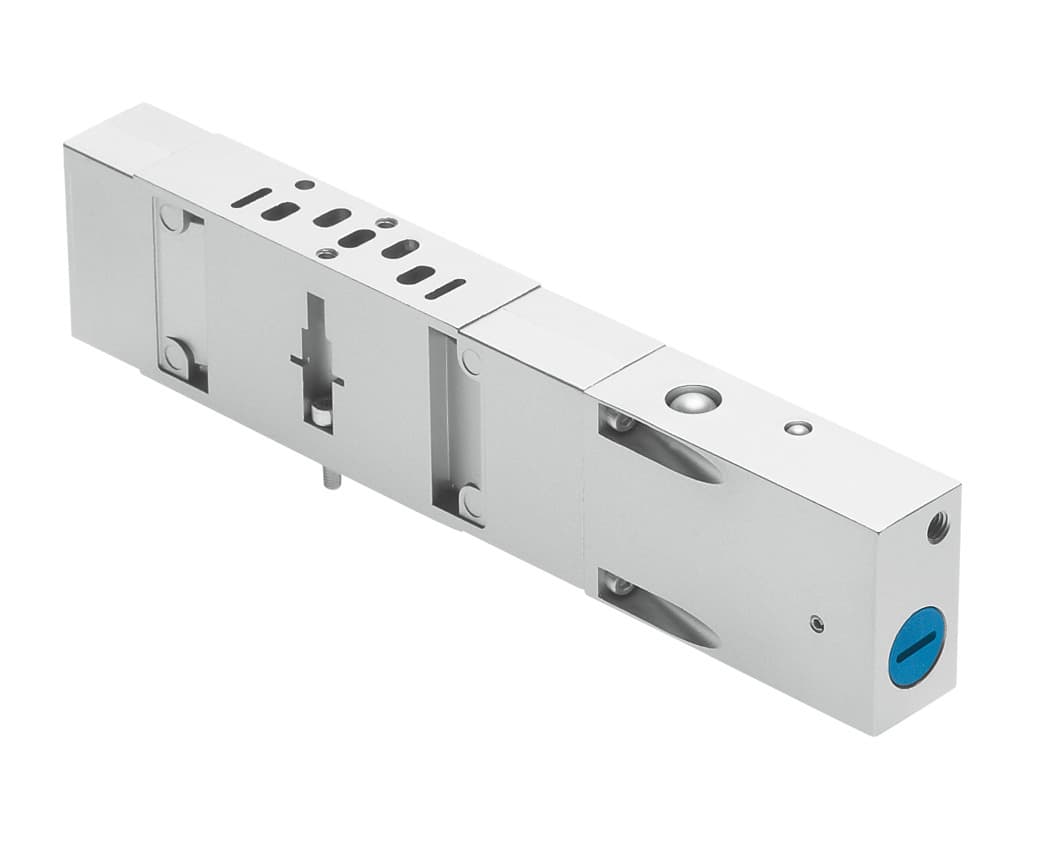

Festo VABF-S3-2-L1D1-C Vertical Pressure Shut-off Plate

Selling Points

1The Festo VABF-S3-2-L1D1-C is designed with an 18 mm construction width, adhering to the ISO 15407-1 standard, ensuring precise and reliable operation in various pneumatic applications.
2This vertical pressure shut-off plate offers optional mounting positions, allowing for flexible installation on manifold sub-bases or individual sub-bases, enhancing its versatility in different system configurations.
3With a standard nominal flow rate of 400 l/min, the VABF-S3-2-L1D1-C is optimized for efficient airflow management in pneumatic systems, ensuring consistent performance under various operating conditions.
4The product is designed to operate with compressed air as per ISO 8573-1:2010 [7:4:4], and lubricated operation is possible, though always required for optimal performance, making it suitable for demanding applications.
5The VABF-S3-2-L1D1-C features a corrosion resistance class of 0 (no corrosion stress) and meets LABS (PWIS) conformity, ensuring durability and reliability in harsh environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	18mm	Based on norm	ISO 15407-1
Mounting position	Any	Pneumatic vertical stacking	Shut-off for 1
Symbol	00991889	Operating pressure	-0.9bar 10bar
Standard nominal flow rate	400l/min	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Degree of protection	IP65 NEMA 4
Ambient temperature	-5°C 50°C	Product weight	212g
Vertical stacking mounting type	On manifold sub-base On individual sub-base	Note on materials	RoHS-compliant
Housing material	Die-cast aluminum	Manufacturer ID	543601

Specifications may be subject to change without notice
