Product Model

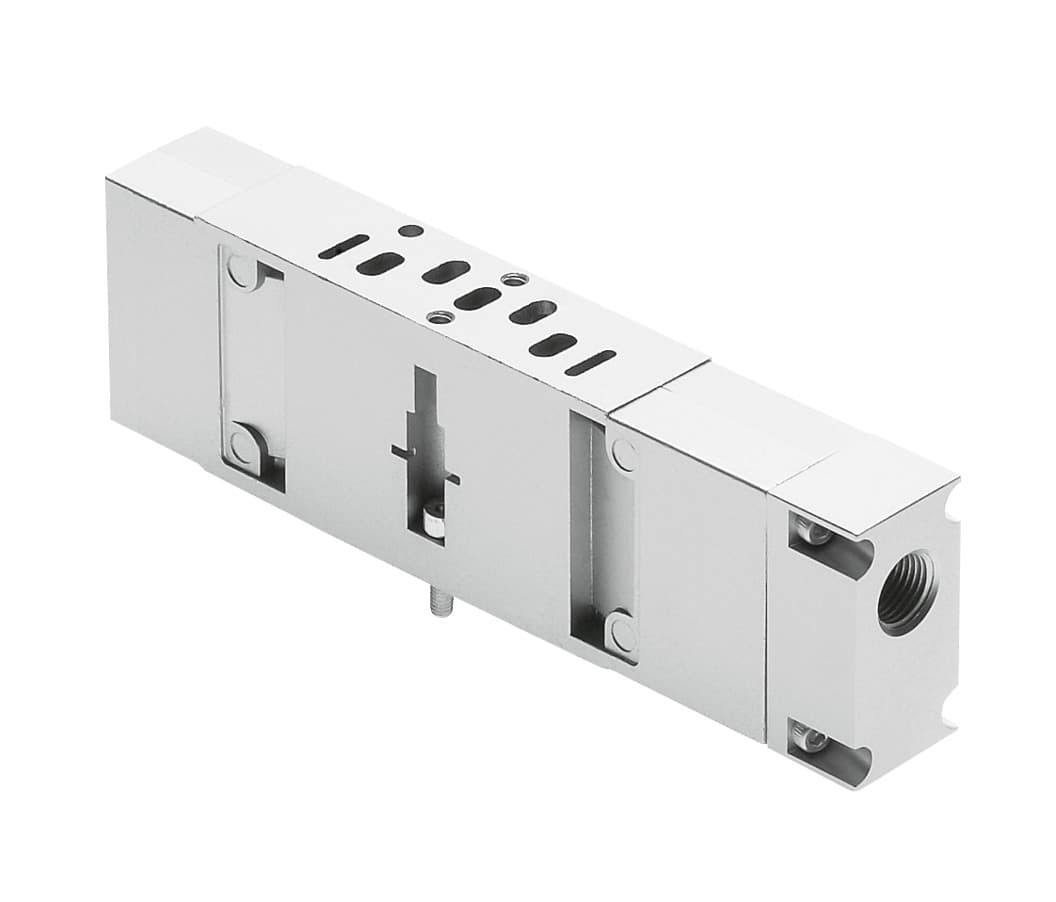

vabf-s3-2-p1a3-g18
Selling Points
- 118mm construction width for precise fitment.
- 2Compliant with ISO 15407-1 for standard compatibility.
- 3Optional mounting position for versatile installation.
- 4Alternative compressed air supply for 1 vertical pneumatic linkage.
- 5IP65 and NEMA 4 protection for reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18mm | Based on norm | ISO 15407-1 |
Mounting position | Any | Pneumatic vertical stacking | Alternative pressure supply for 1 |
Symbol | 00991883 | Operating pressure | -0.9bar 10bar |
Standard nominal flow rate | 500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 146g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
Housing material | Die-cast aluminum | Manufacturer ID | 544435 |
Specifications may be subject to change without notice
