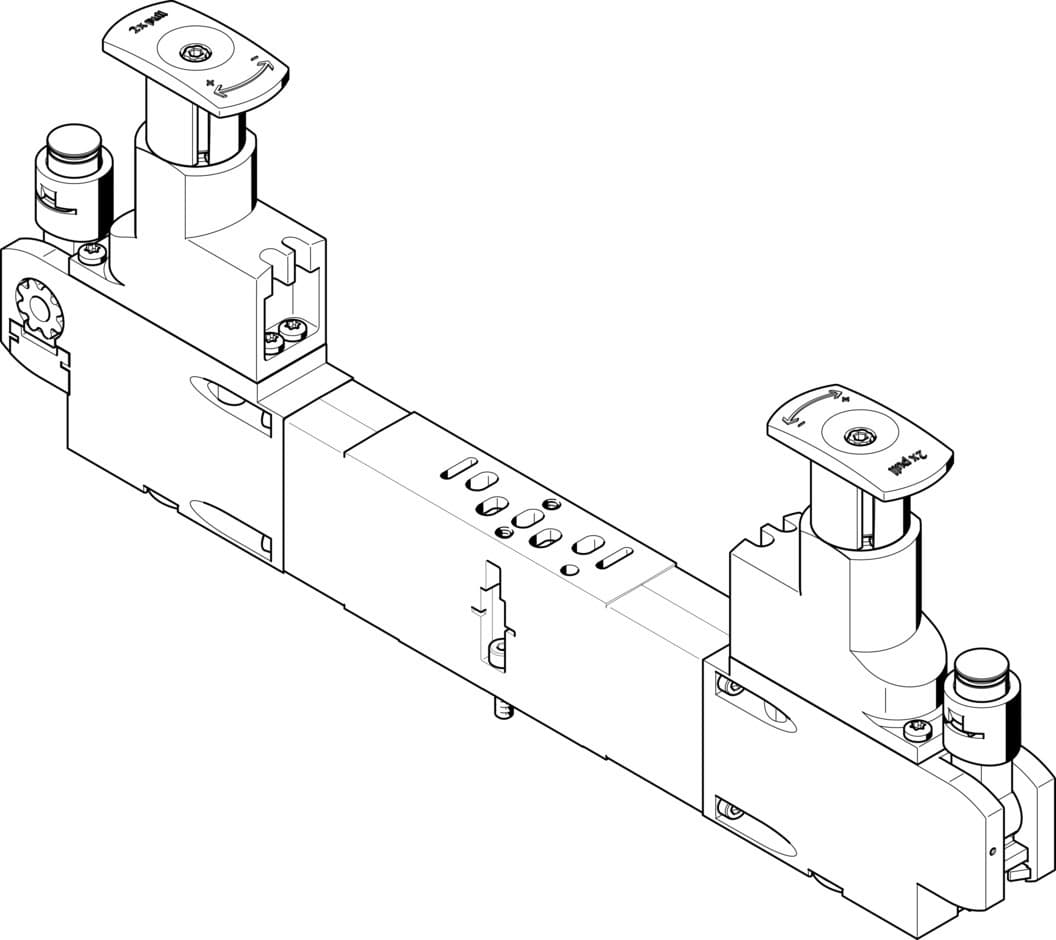

Festo VABF-S3-2-R5C2-C-10 Regulator Plate - High-Quality Pressure Regulation

Selling Points

1The Festo VABF-S3-2-R5C2-C-10 regulator plate offers precise pressure regulation, ensuring consistent performance in pneumatic systems.
2With a mounting position flexibility, this regulator can be installed in any orientation, making it versatile for various applications.
3The regulator plate is designed for reversible operation, allowing it to handle both 2 and 4-way pneumatic connections.
4Built with high-quality materials, including die-cast aluminum for the controller housing, this regulator provides durability and corrosion resistance.
5The VABF-S3-2-R5C2-C-10 features a service life of up to 10 million cycles, ensuring reliable operation over extended periods.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	18mm	Based on norm	ISO 15407-1
Mounting position	Any	Pneumatic vertical stacking	Pressure regulator for 2 and 4, reversible
Controller function	Outlet pressure constant With secondary exhausting	Symbol	00991862
Optional pressure gauge	Possible	Pressure regulation range MPa	0.05MPa 0.85MPa
Pressure regulation range	0.5bar 8.5bar	Pressure regulation range psi	7.25psi 123.25psi
Inlet pressure 1	0.5bar 10bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Degree of protection	IP65 NEMA 4
Ambient temperature	-5°C 50°C	Product weight	245g
Vertical stacking mounting type	On manifold sub-base On individual sub-base	Pressure gauge connection	With retaining clamp
Note on materials	RoHS-compliant	Material of operator panel	PA
Controller housing material	Die-cast aluminum	Manufacturer ID	543542

Specifications may be subject to change without notice
