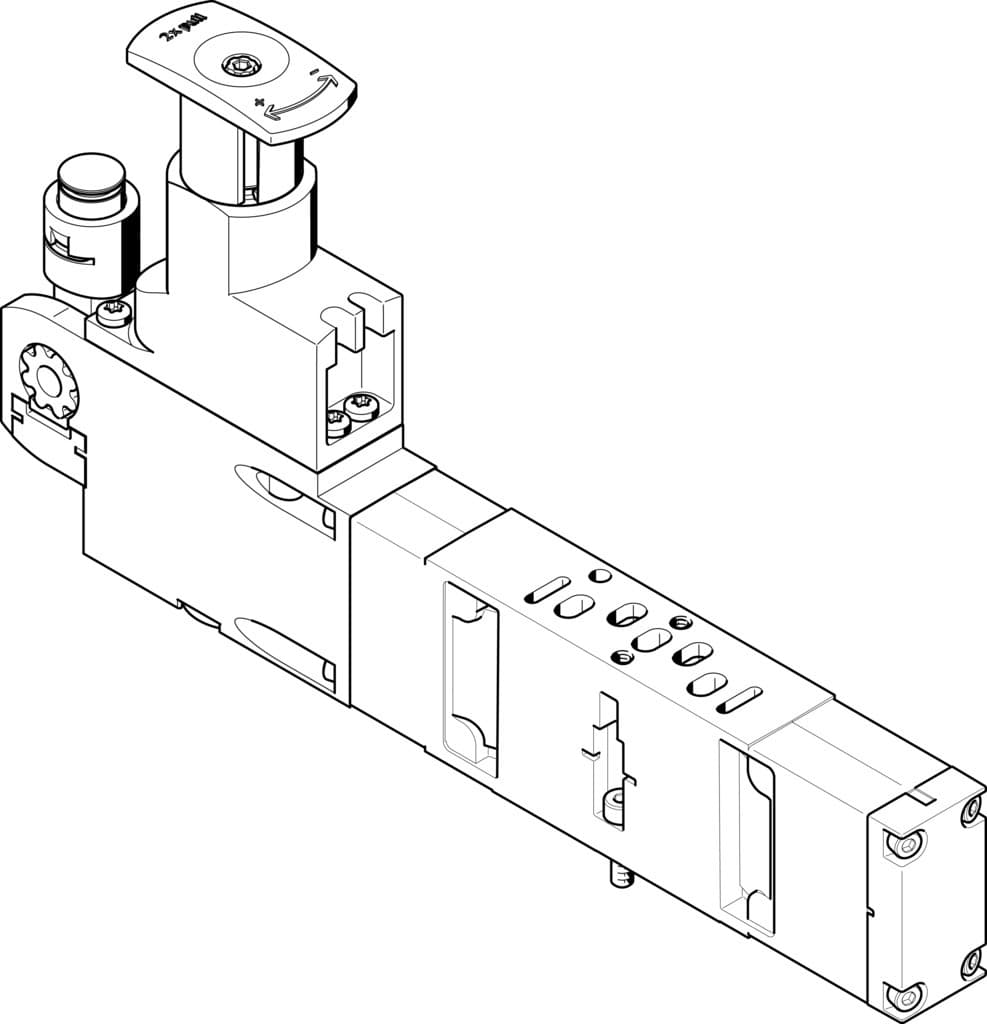

Festo VABF-S3-2-R7C2-C-6 Pressure Regulator Plate

Selling Points

1The VABF-S3-2-R7C2-C-6 pressure regulator plate ensures precise control of outlet pressure, maintaining a constant level within the specified range of 0.05 MPa to 0.6 MPa.
2This regulator plate can be mounted in any position, making it suitable for various pneumatic vertical stacking applications.
3Made from die-cast aluminum, the controller housing is robust and durable, ensuring long-lasting performance in demanding environments.
4The VABF-S3-2-R7C2-C-6 complies with ISO 15407-1 and VDMA24364-B1/B2-L standards, ensuring high-quality performance and reliability.
5With a corrosion resistance class (CRC) of 0, this regulator plate is designed to withstand harsh operating conditions without compromising its functionality.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	18mm	Based on norm	ISO 15407-1
Mounting position	Any	Pneumatic vertical stacking	Pressure regulator for 4 reversible
Controller function	Outlet pressure constant With secondary exhausting	Symbol	00991945
Optional pressure gauge	Possible	Pressure regulation range MPa	0.05MPa 0.6MPa
Pressure regulation range	0.5bar 6bar	Pressure regulation range psi	7.25psi 87psi
Inlet pressure 1	0.5bar 10bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Degree of protection	IP65 NEMA 4
Ambient temperature	-5°C 50°C	Product weight	245g
Vertical stacking mounting type	On manifold sub-base On individual sub-base	Pressure gauge connection	With retaining clamp
Note on materials	RoHS-compliant	Material of operator panel	PA
Controller housing material	Die-cast aluminum	Manufacturer ID	546790

Specifications may be subject to change without notice
