Product Model
vabf-s4-1-a2g2-g14
Selling Points

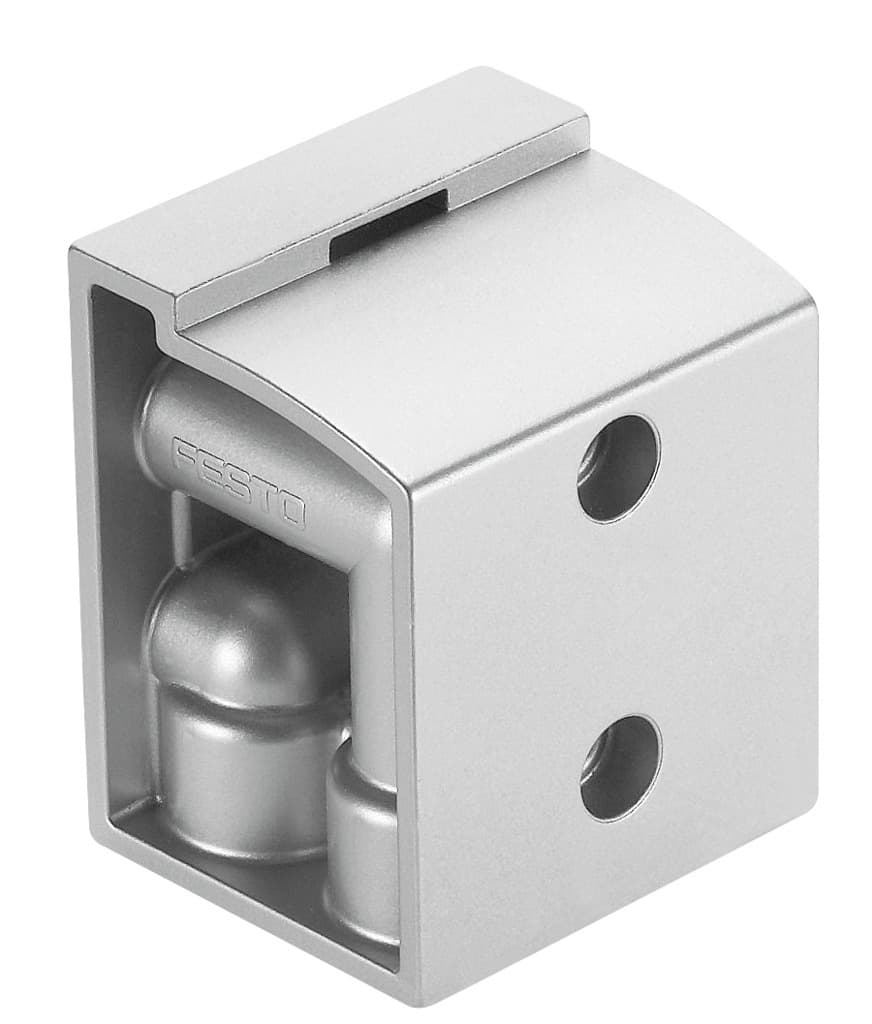

- 1The Festo VABF-S4-1-A2G2-G14 angled connection plate is constructed with a 26mm width, adhering to the ISO 15407-2 standard for precise and reliable connections.
- 2This product offers optional mounting positions, ensuring flexibility in installation and integration with various pneumatic systems.
- 3The VABF-S4-1-A2G2-G14 operates within a pressure range of -0.09 MPa to 1 MPa, making it suitable for a variety of pneumatic applications.
- 4It features a die-cast aluminum housing with IP65 and NEMA 4 degrees of protection, ensuring durability and resistance to environmental factors.
- 5The product is designed for use with compressed air as per ISO 8573-1:2010 [7:4:4] and can operate with oil lubrication, enhancing its performance and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 26mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Operating pressure | -0.9bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 217g | Type of mounting | With through-hole |
Housing material | Die-cast aluminum | Manufacturer ID | 539721 |
Specifications may be subject to change without notice
