Product Model
vabf-s4-1-f1b1-c
Selling Points
- 1The Festo VABF-S4-1-F1B1-C throttle plate is designed to operate with compressed air, ensuring precise control in pneumatic systems. It features a die-cast aluminum housing and is based on the ISO 15407-2 standard.
- 2This throttle plate offers a wide operating pressure range of 0.9 to 10 bar, making it versatile for various industrial applications. It also provides a high degree of protection with IP65 and NEMA 4 ratings.
- 3The VABF-S4-1-F1B1-C is easy to mount in any position, allowing for flexible installation options. It is suitable for use in both vertical stacking and individual sub-base configurations.
- 4With a compact width of 26 mm, this throttle plate is ideal for space-constrained environments. It supports operation with oil lubrication, enhancing its durability and performance.
- 5The Festo VABF-S4-1-F1B1-C throttle plate is CE and UKCA marked, ensuring compliance with EU low voltage directives and UK instructions for electrical equipment. It also features a corrosion resistance class of 0, indicating no corrosion stress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 26mm | Based on norm | ISO 15407-2 |

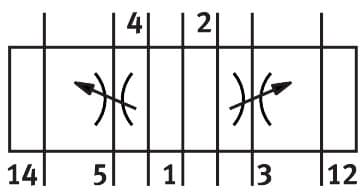

Mounting position | Any | Symbol | 00991467 |
Operating pressure | 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 320g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Housing material | Die-cast aluminum | Manufacturer ID | 540175 |
Specifications may be subject to change without notice
