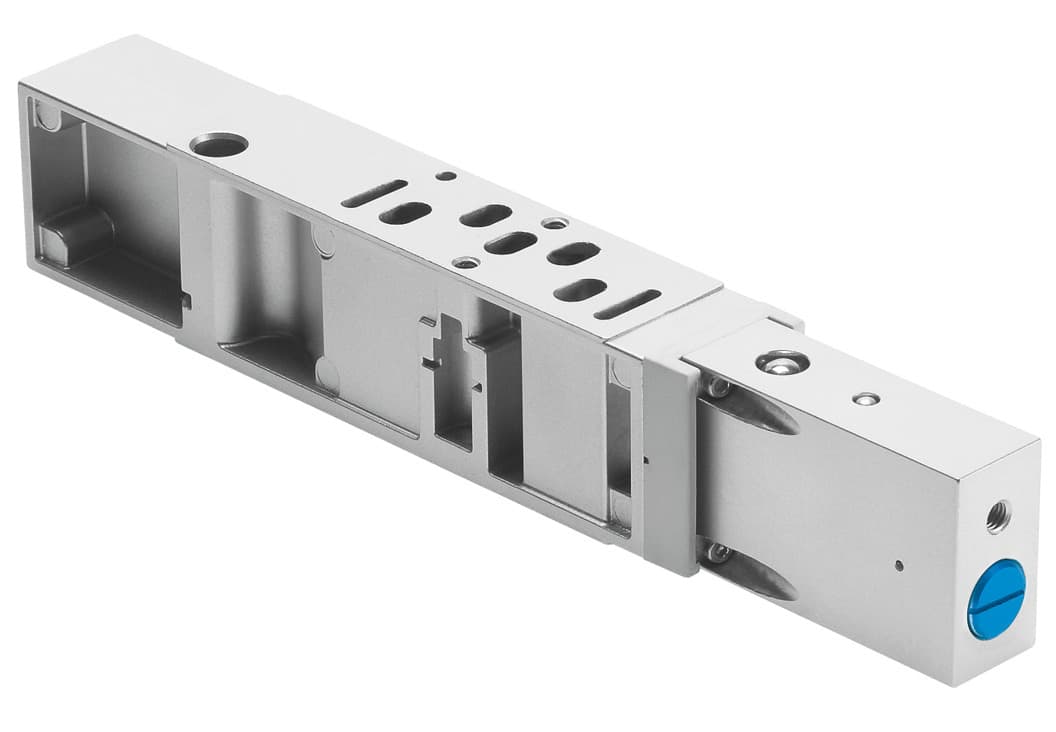

Festo VABF-S4-1-L1D1-C Vertical Pressure Shut-off Plate

Selling Points

1The Festo VABF-S4-1-L1D1-C Vertical Pressure Shut-off Plate features a 26 mm construction width, adhering to the ISO 15407-2 standard, ensuring precise and reliable operation in various pneumatic systems.
2This vertical pressure shut-off plate offers optional mounting positions, allowing for flexible installation on manifold sub-bases or individual sub-bases, enhancing its versatility in different application settings.
3With an operating pressure range of 1 MPa to 10 bar, the VABF-S4-1-L1D1-C is suitable for a wide range of pneumatic applications, from low to high-pressure environments.
4The plate is designed to operate with compressed air to ISO 8573-1:2010 [7:4:4] standards, ensuring compatibility with various pneumatic systems and maintaining high air quality.
5Constructed from die-cast aluminum, the VABF-S4-1-L1D1-C offers excellent corrosion resistance (CRC 0) and meets IP65 and NEMA 4 protection standards, ensuring durability and reliability in harsh environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	26mm	Based on norm	ISO 15407-2
Mounting position	Any	Symbol	00995427
Operating pressure	10bar	CE marking (see declaration of conformity)	As per EU low voltage directive
UKCA marking (see declaration of conformity)	To UK instructions for electrical equipment	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Degree of protection	IP65 NEMA 4
Pilot medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Ambient temperature	-5°C 50°C
Product weight	273g	Vertical stacking mounting type	On manifold sub-base On individual sub-base
Housing material	Die-cast aluminum	Manufacturer ID	542885

Specifications may be subject to change without notice
