Product Model
vabf-s4-1-r1c2-c-6
Selling Points

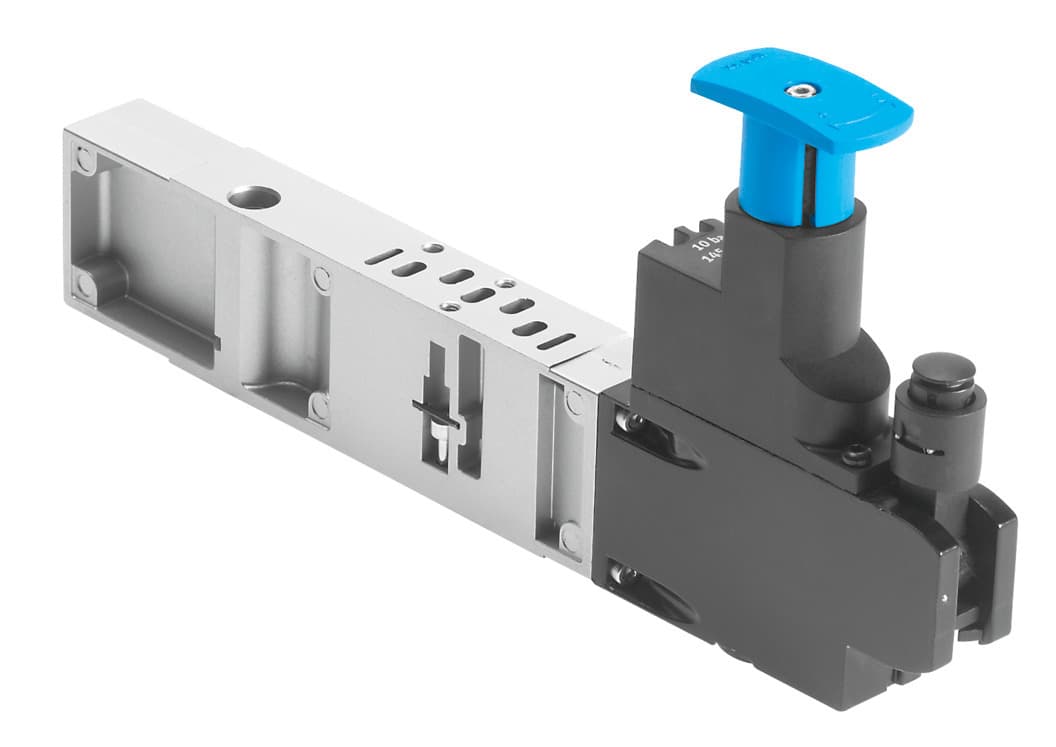

- 1The Festo VABF-S4-1-R1C2-C-6 regulator plate is designed to maintain a constant output pressure, ensuring consistent performance in pneumatic systems. It is based on the ISO 15407-2 standard and features a construction width of 26 mm.
- 2This regulator plate offers flexibility in mounting positions, allowing for arbitrary installation. It is suitable for compressed air operating media, adhering to ISO 8573-1:2010 standards.
- 3The VABF-S4-1-R1C2-C-6 supports lubricated operation, which is required for further operation. It also features corrosion resistance class CRC 0, ensuring no corrosion stress under normal conditions.
- 4The regulator plate has a protection category of IP65 and NEMA 4, providing robust protection against dust and water. It operates within an ambient temperature range of -5°C to 50°C.
- 5The product weighs 402 grams and can be mounted on manifold sub-bases or individual sub-bases. It includes pressure gauge connection via retaining clamp and is made from PA material for the control panel and die-cast aluminum for the regulator housing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 26mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Controller function | Outlet pressure constant With secondary exhausting |
Symbol | 00992227 | Optional pressure gauge | Possible |
Operating pressure | 6bar | Pressure regulation range MPa | 0.05MPa 0.6MPa |
Pressure regulation range | 0.5bar 6bar | Pressure regulation range psi | 7.25psi 87psi |
Inlet pressure 1 | 0.5bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 402g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Pressure gauge connection | With retaining clamp | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 540152 |
Specifications may be subject to change without notice
