Product Model
vabf-s4-2-l1d1-c
Selling Points

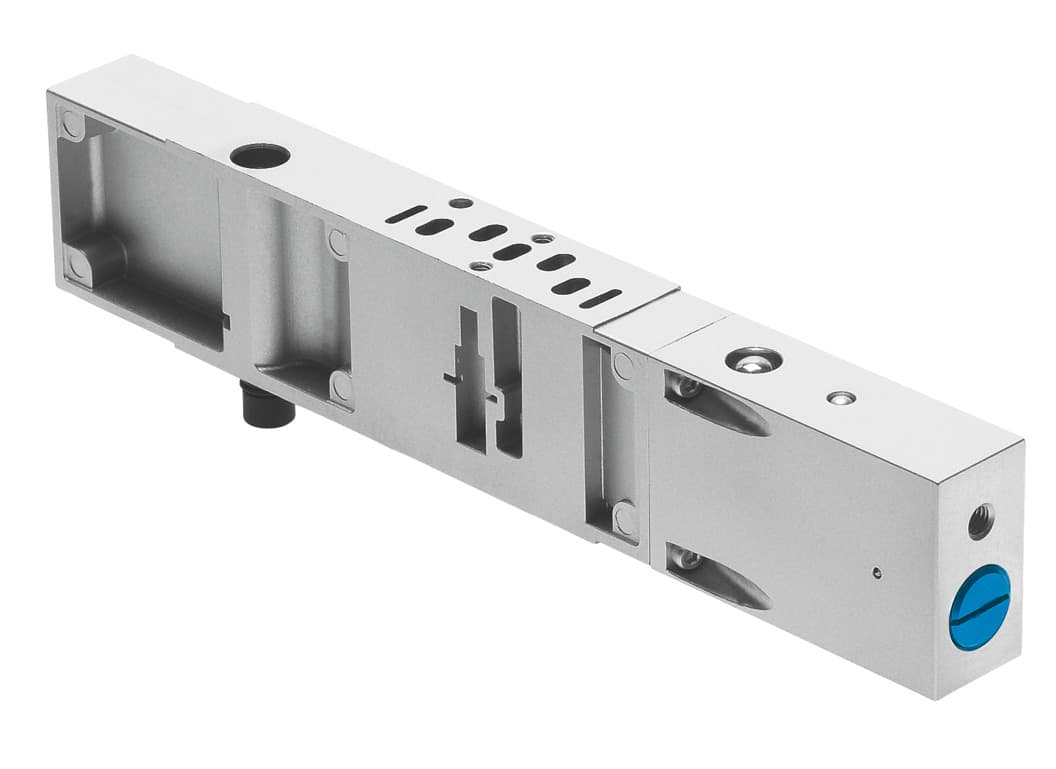

- 1The Festo VABF-S4-2-L1D1-C vertical pressure shut-off plate is constructed with 18mm width, adhering to the ISO 15407-2 standard, ensuring high precision and reliability in your pneumatic system.
- 2This product offers optional mounting positions, allowing for flexible installation on manifold sub-bases or individual sub-bases, making it versatile for various applications.
- 3The VABF-S4-2-L1D1-C is designed to operate with compressed air to ISO 8573-1:2010 [7:4:4] and can be used with lubricated operation, enhancing its durability and performance.
- 4With an IP65 degree of protection and NEMA 4 rating, this shut-off plate provides robust protection against dust and water, ensuring reliable operation in harsh environments.
- 5The die-cast aluminum housing of the VABF-S4-2-L1D1-C offers excellent corrosion resistance, maintaining its integrity over time and ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Symbol | 00995427 |
Operating pressure | 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 209g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Housing material | Die-cast aluminum | Manufacturer ID | 542884 |
Specifications may be subject to change without notice
