Product Model

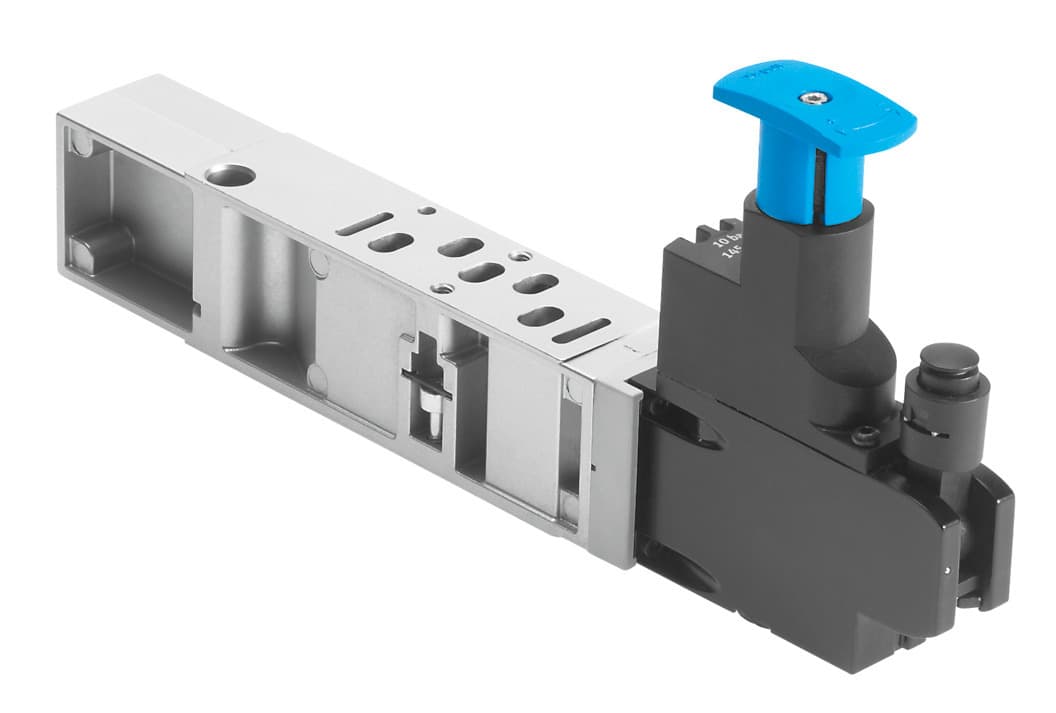

vabf-s4-2-r1c2-c-6
Selling Points
- 1Precision Pressure Control: The Festo VABF-S4-2-R1C2-C-6 regulator plate ensures constant output pressure with secondary venting, providing reliable operation in pneumatic systems.
- 2ISO 15407-2 Compliance: Built to the ISO 15407-2 standard, this regulator plate offers high-quality performance and durability in various industrial applications.
- 3Versatile Mounting Options: With an optional mounting position, the VABF-S4-2-R1C2-C-6 can be easily integrated into manifold sub-bases or individual sub-bases.
- 4Corrosion Resistance: Featuring a corrosion resistance class of CRC 0, this regulator plate is designed to withstand harsh environments without compromising performance.
- 5Operational Flexibility: The VABF-S4-2-R1C2-C-6 supports lubricated operation and can be used with compressed air to ISO 8573-1:2010 standards, ensuring smooth and efficient operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Controller function | Outlet pressure constant With secondary exhausting |
Symbol | 00992227 | Optional pressure gauge | Possible |
Operating pressure | 6bar | Pressure regulation range MPa | 0.05MPa 0.6MPa |
Pressure regulation range | 0.5bar 6bar | Pressure regulation range psi | 7.25psi 87psi |
Inlet pressure 1 | 0.5bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 350g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Pressure gauge connection | With retaining clamp | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 540151 |
Specifications may be subject to change without notice
