Product Model

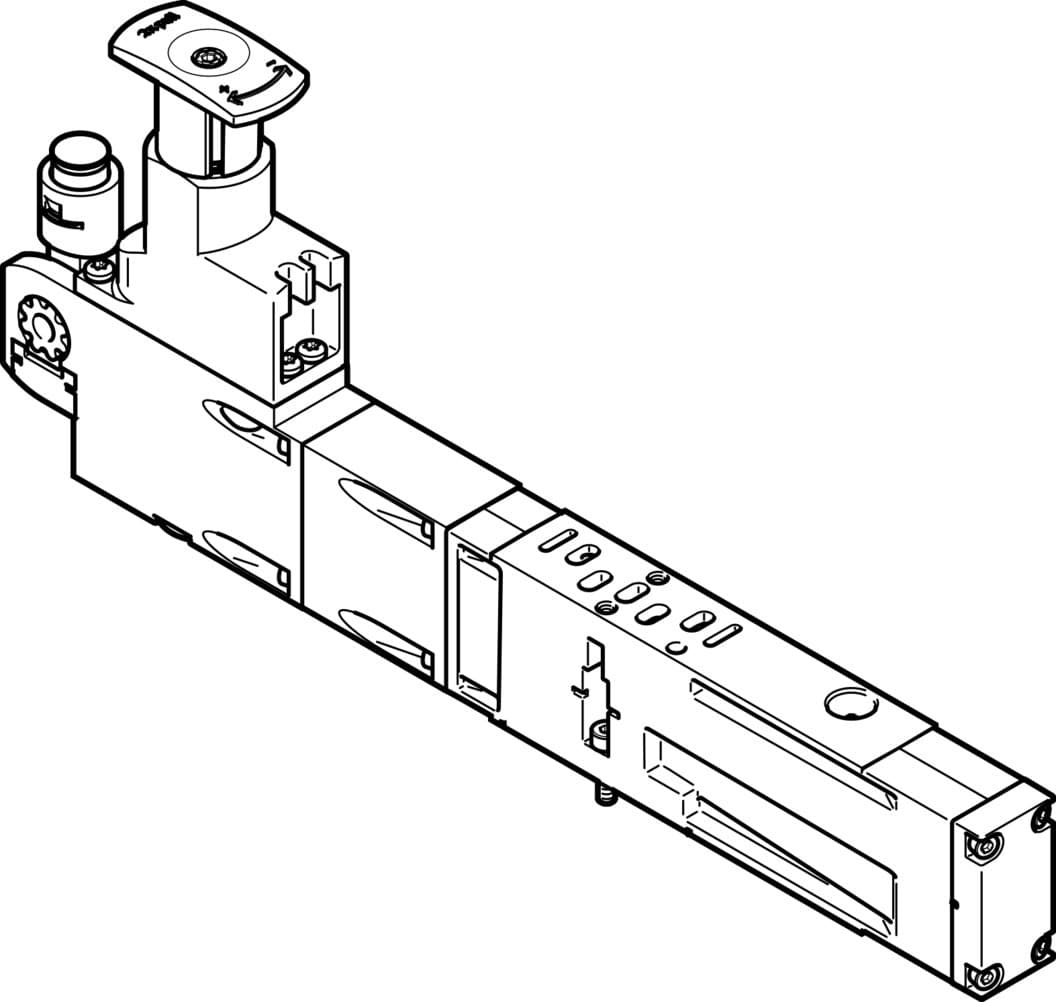

vabf-s4-2-r2c2-c-6e
Selling Points
- 1Regulates pressure accurately within 0.2 MPa to 0.6 MPa range.
- 2Made from die-cast aluminum for durability and resistance to corrosion.
- 3Features a retaining clamp for secure mounting and easy integration.
- 4Meets ISO 15407-2 and CE marking for safety and quality assurance.
- 5Suitable for compressed air systems with oil lubrication possible for further use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Controller function | Outlet pressure constant With secondary exhausting |
Symbol | 00991581 | Optional pressure gauge | Possible |
Operating pressure | 6bar | Pressure regulation range MPa | 0.2MPa 0.6MPa |
Pressure regulation range | 2bar 6bar | Pressure regulation range psi | 29psi 87psi |
Inlet pressure 1 | 0.5bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 410g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Pressure gauge connection | With retaining clamp | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 560765 |
Specifications may be subject to change without notice
