Product Model

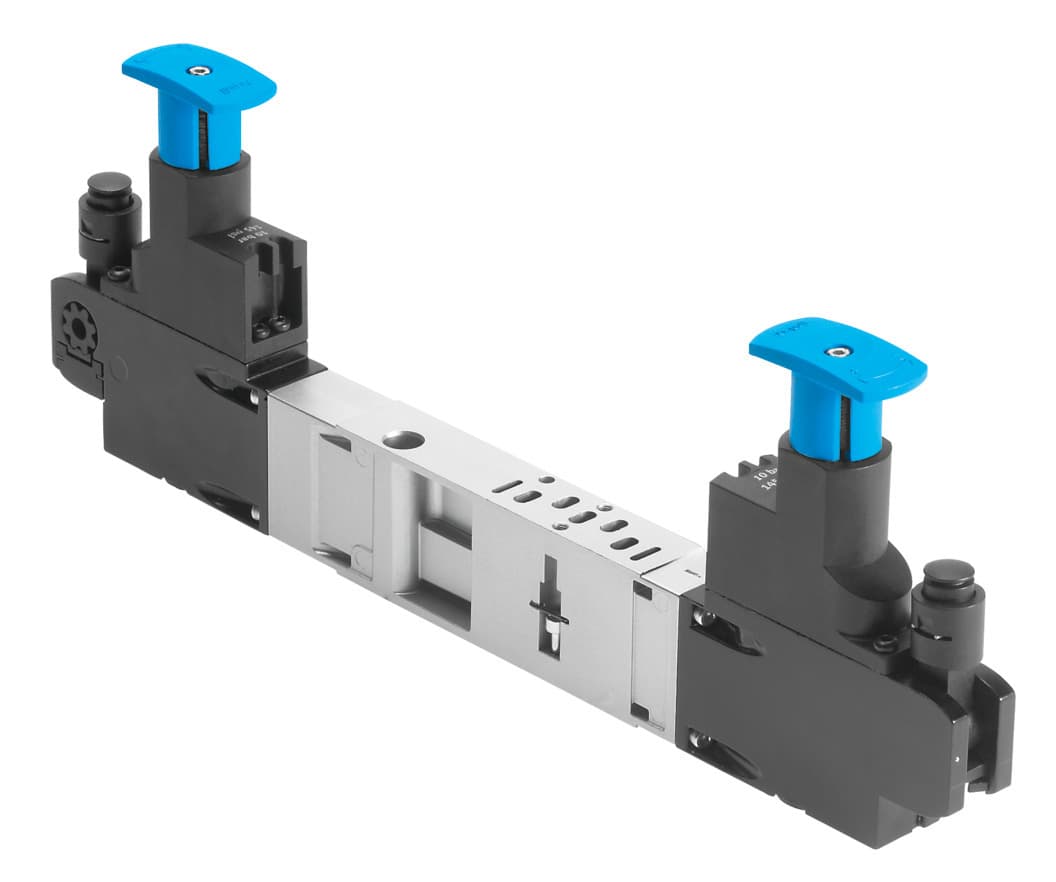

vabf-s4-2-r5c2-c-6
Selling Points
- 1The Festo VABF-S4-2-R5C2-C-6 pressure regulator plate ensures constant output pressure with a regulation range of 0.05 MPa to 0.6 MPa, making it perfect for maintaining precise air pressure in various industrial applications.
- 2This regulator plate features secondary venting, which enhances its performance by allowing for efficient pressure regulation and minimizing pressure fluctuations.
- 3The VABF-S4-2-R5C2-C-6 is designed to operate with compressed air as per ISO 8573-1:2010 [7:4:4], ensuring it meets stringent quality standards for air quality in industrial settings.
- 4The regulator plate is constructed with a die-cast aluminum housing, providing durability and resistance to corrosion, with a corrosion resistance class of CRC 0 - No corrosion stress.
- 5The VABF-S4-2-R5C2-C-6 is CE marked and compliant with EU Low Voltage Directive and UK regulations for electrical equipment, ensuring it meets all necessary safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18mm | Based on norm | ISO 15407-2 |
Mounting position | Any | Controller function | Outlet pressure constant With secondary exhausting |
Symbol | 00991862 | Optional pressure gauge | Possible |
Operating pressure | 6bar | Pressure regulation range MPa | 0.05MPa 0.6MPa |
Pressure regulation range | 0.5bar 6bar | Pressure regulation range psi | 7.25psi 87psi |
Inlet pressure 1 | 0.5bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 611g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Pressure gauge connection | With retaining clamp | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 540167 |
Specifications may be subject to change without notice
