Product Model
vabf-s4-2-s
Selling Points
- 118 mm width, perfect for space-efficient installations.
- 2Optional mounting positions for flexible setup.
- 3Operating pressure 3-10 bar, suitable for various pneumatic applications.
- 4CRC 0, ensuring no corrosion stress in harsh environments.
- 5IP65 and NEMA 4 protection class for durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18mm | Based on norm | ISO 15407-2 |

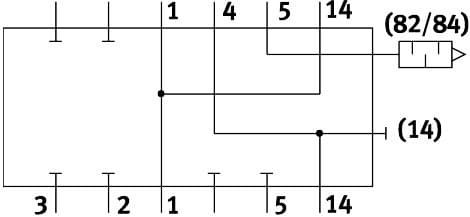

Mounting position | Any | Symbol | 00992864 |
Operating pressure | 3bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 203.5g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Pilot air port 14 | Sub-base, size 18 mm as per ISO 15407-2 | Pneumatic connection 1 | Sub-base, size 18 mm as per ISO 15407-2 |
Pneumatic connection 4 | Sub-base, size 18 mm as per ISO 15407-2 | Pneumatic connection 5 | Sub-base, size 18 mm as per ISO 15407-2 |
Note on materials | RoHS-compliant | Plate material | Wrought aluminum alloy |
Manufacturer ID | 573200 |
Specifications may be subject to change without notice
