Product Model
vabf-s6-1-p5a4-g12-4-1-p
Selling Points
- 1High Vibration Resistance: Withstands transport application tests at severity level 2, ensuring durability in demanding environments.
- 2Soft Start Functionality: Gradually opens and closes to prevent shock loads, extending the lifespan of connected components.
- 3Compliant with ISO Standards: Meets ISO 8573-1:2010 for compressed air quality and ISO 5599-2 for pneumatic connections.
- 4Robust Design: Features a mechanical spring return and ducted venting air for enhanced performance and safety.
- 5Easy Installation: Compatible with various mounting options, including on-sub-base installation for flexible integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Max. positive test pulse with 0 signal | 2500μs | Max. negative test pulse on 1 signal | 1400μs |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Based on norm | ISO 5599-2 | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Self-resetting via electrical control signal | Structural design | Piston gate valve |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |

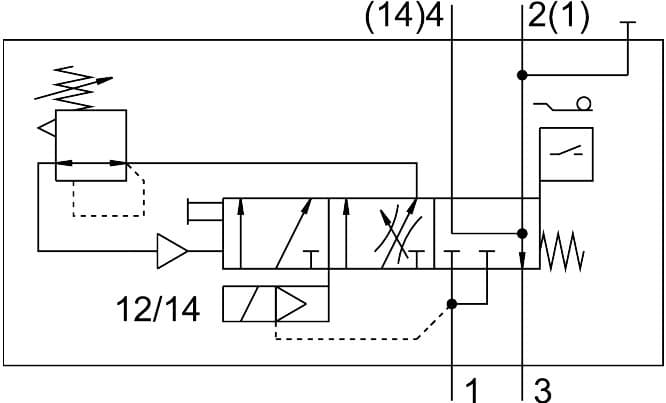

Symbol | 00995782 | Valve function | Pressure build-up function |
Switching element function | N/O contact | Note on forced dynamization | Switching frequency at least once a month |
Switching position sensing | Switching position with sensor | Operating pressure | 2bar 12bar |
Switchover pressure presetting | 4bar | Standard nominal flow rate pressurization | 3000l/min |
Standard nominal flow rate exhaust air | 3300l/min | Nominal operating voltage DC | 24V |
Coil characteristics | 24 V DC: 2.5 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 605g | Electrical connection | Form C Plug as per EN 175301-803 Rectangular design |
Sensor connection | Plug 4-pin M12x1 | Type of mounting | On sub-base |
Pilot air port 12/14 | Sub-base, size 1 as per ISO 5599-2 | Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-2 |
Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-2 | Pneumatic connection 3 | G1/2 |
Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-2 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Material of screws | Steel Galvanized | Manufacturer ID | 557377 |
Specifications may be subject to change without notice
