Product Model

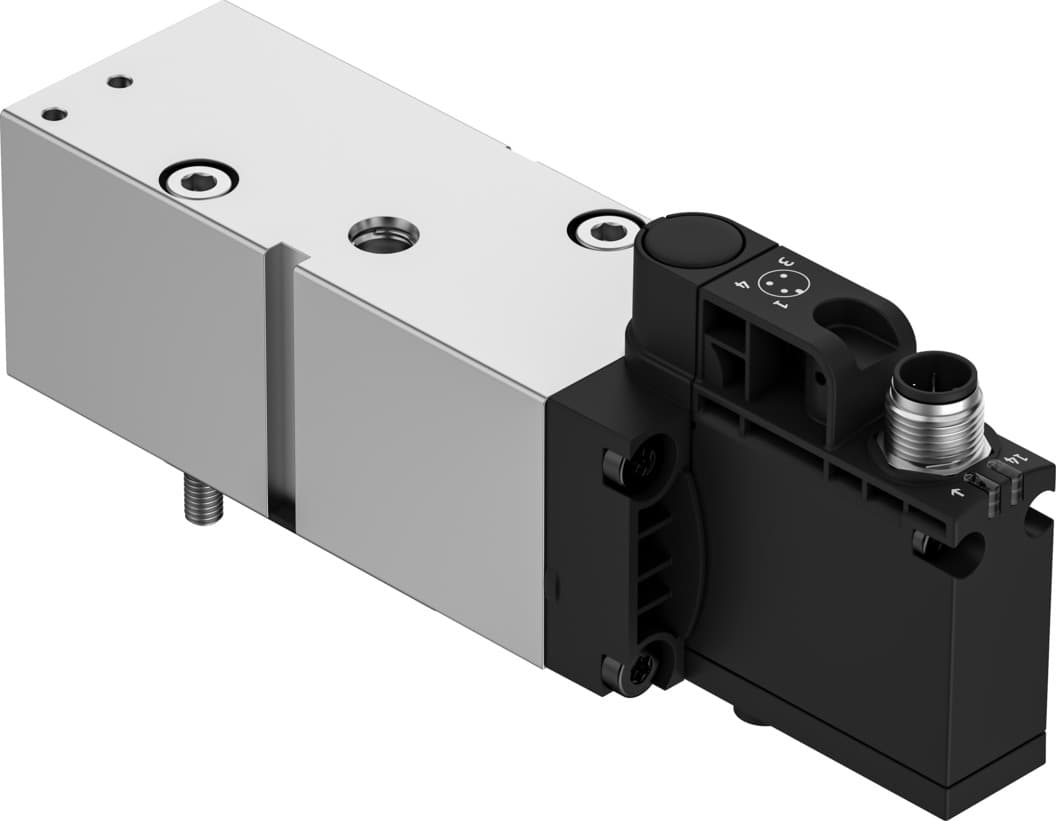

vabf-s6-1-p5a4s1s-g12-1t1l-pz
Selling Points
- 1The Festo VABF-S6-1 P5A4S1S-G12-1T1L-PZ is a high-performance pneumatic valve terminal designed for precise control and efficient operation in various industrial applications. It features a sturdy metal housing and supports flow rates up to 850 l/min.
- 2This valve terminal offers standardized connections from individual valves to the terminal, ensuring seamless integration with CPX modules and fieldbus connections. It also supports diagnostics down to the individual valve, enhancing system reliability.
- 3The VABF-S6-1 P5A4S1S-G12-1T1L-PZ allows for the creation of pressure zones and individual valve configurations. It supports up to 8 valves and 8 solenoid coils, with input feedback for precise control. The terminal can be configured to increase the number of valve positions to 64 with 128 solenoid coils.
- 4This valve terminal is part of Festo's modular system, offering a range of configuration options. It includes an electrical supply plate that increases the maximum number of valve positions possible to 64, with 128 solenoid coils. This enhances economic efficiency and safety by allowing individual disconnection of valve groups.
- 5The Festo VABF-S6-1 P5A4S1S-G12-1T1L-PZ is designed for easy installation and maintenance. It features a reversible design and operates within a pressure range of -0.09 to +1 MPa, making it suitable for a variety of industrial applications requiring precise pneumatic control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Max. positive test pulse with 0 signal | 2000μs | Max. negative test pulse on 1 signal | 1200μs |
Width | 40mm | Length | 155mm |
Width dimension | 41mm | Valve size | 40mm |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Actuation type | Electrical | Sealing principle | Soft |
Mounting position | Any | Manual override | None |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00995977 |
Valve function | Pressure build-up Exhaust | Switching element function | N/C contact |
Lap | Underlap | Note on forced dynamization | Switching frequency at least once a month |
Signal status display | Yellow LED, valve control Green LED, pressure switch, exhausted status | Switching position sensing | Via pressure switch, exhausted status |
Operating pressure | 3bar 10bar | Pilot pressure MPa | 0.3MPa 0.8MPa |
Pilot pressure | 3bar 8bar | Changeover pressure | Not adjustable Switching point between 50 - 75% of operating pressure |
Suitability for vacuum | no | Standard nominal flow rate pressurization | 3000l/min |
Note on standard nominal flow rate, pressurization | MPA: 1200 l/min VTSA: 3000 l/min | Standard nominal flow rate exhaust air | 3300l/min |
Note on standard nominal flow rate, exhaust air | MPA: 1600 l/min VTSA: 3300 l/min | Duty cycle | 100% |
Nominal operating voltage DC | 24V | Coil characteristics | 24 V DC: 1.6 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Storage temperature | -20°C 60°C |
Temperature of medium | -5°C 50°C | Relative air humidity | Max. 90 % at 40 °C |
Degree of protection | IP65 | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | MTTF, subcomponent | 452 years, pressure switch |
Product weight | 466g | Electrical actuation | Multi-pin |
Electrical connection | Plug-in | Sensor connection | Plug 3-pin M12x1 |
Type of mounting | On sub-base | Pneumatic connection 3 | G1/2 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
Manufacturer ID | 8161611 |
Specifications may be subject to change without notice
