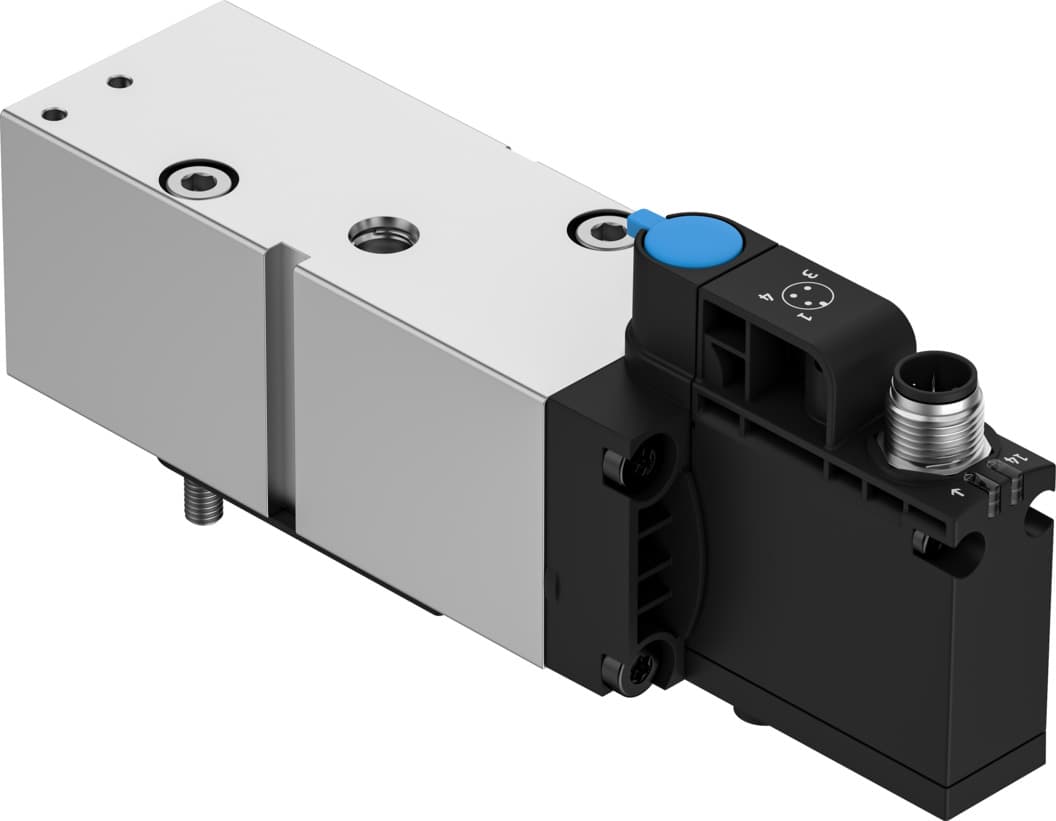

Product Model
vabf-s6-1-p5a4s1ye-g12-1t1l-pz
Selling Points
- 1The VABF-S6-1-P5A4S1YE-G12-1T1L-PZ features a soft-start function, ensuring smooth and controlled valve operation, reducing wear and tear on the system.
- 2This valve is designed to withstand high vibration levels, making it suitable for applications in harsh environments, such as those encountered in industrial automation.
- 3The valve operates with non-reversible flow direction, ensuring that compressed air flows in one direction only, which is crucial for maintaining system integrity and efficiency.
- 4The VABF-S6-1-P5A4S1YE-G12-1T1L-PZ is pilot actuated, allowing for precise control over the valve's operation through the use of a pilot air supply.
- 5This valve can operate within a wide pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), making it versatile for various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Max. positive test pulse with 0 signal | 2000μs | Max. negative test pulse on 1 signal | 1200μs |
Width | 40mm | Length | 155mm |
Width dimension | 41mm | Valve size | 40mm |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Actuation type | Electrical | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Self-resetting via electrical control signal |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00995976 |
Valve function | Pressure build-up Exhaust | Switching element function | N/C contact |
Lap | Underlap | Note on forced dynamization | Switching frequency at least once a month |
Signal status display | Yellow LED, valve control Green LED, pressure switch, exhausted status | Switching position sensing | Via pressure switch, exhausted status |
Operating pressure | 3bar 10bar | Pilot pressure MPa | 0.3MPa 0.8MPa |
Pilot pressure | 3bar 8bar | Changeover pressure | Not adjustable Switching point between 50 - 75% of operating pressure |
Suitability for vacuum | no | Standard nominal flow rate pressurization | 3000l/min |
Note on standard nominal flow rate, pressurization | MPA: 1200 l/min VTSA: 3000 l/min | Standard nominal flow rate exhaust air | 3300l/min |
Note on standard nominal flow rate, exhaust air | MPA: 1600 l/min VTSA: 3300 l/min | Duty cycle | 100% |
Nominal operating voltage DC | 24V | Coil characteristics | 24 V DC: 1.6 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Storage temperature | -20°C 60°C |
Temperature of medium | -5°C 50°C | Relative air humidity | Max. 90 % at 40 °C |
Degree of protection | IP65 | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | MTTF, subcomponent | 452 years, pressure switch |
Product weight | 466g | Electrical actuation | Multi-pin |
Electrical connection | Plug-in | Sensor connection | Plug 3-pin M12x1 |
Type of mounting | On sub-base | Pneumatic connection 3 | G1/2 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
Manufacturer ID | 8161609 |
