Product Model

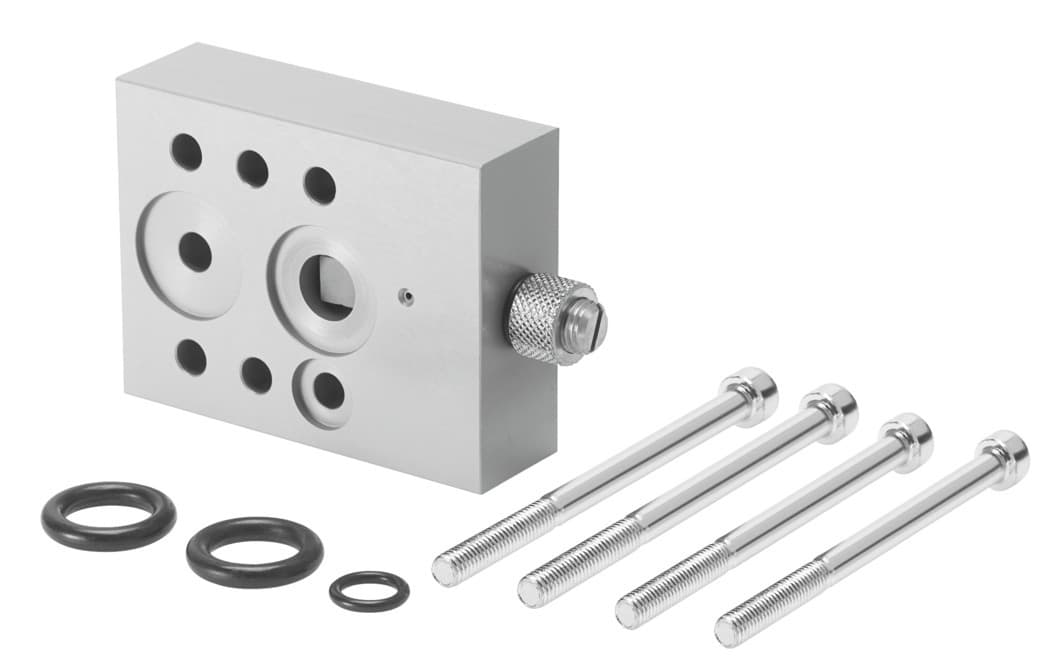

vabf-s7-f1b5p1-f
Selling Points
- 1CRC 4 classification ensures durability in severe environments.
- 2Compatible with external and internal pilot air supplies.
- 3Robust design for harsh industrial conditions.
- 4Meets ISO 8573-1:2010 standards for operating medium.
- 5Ematal-coated aluminum with NBR seals for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Pilot air supply port | External Internal |
Symbol | 00991454 | Operating pressure | 0bar 12bar |
Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Degree of protection | IP65 | Type of mounting | With through-hole |
Pilot air port 12 | G1/4 | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | Flange 1/4 NAMUR connection diagram | Pneumatic connection 3 | G1/4 |
Note on materials | RoHS-compliant | Material of sub-base | Aluminum, ematal coated |
Seals material | NBR | Manufacturer ID | 563401 |
Specifications may be subject to change without notice
