Product Model

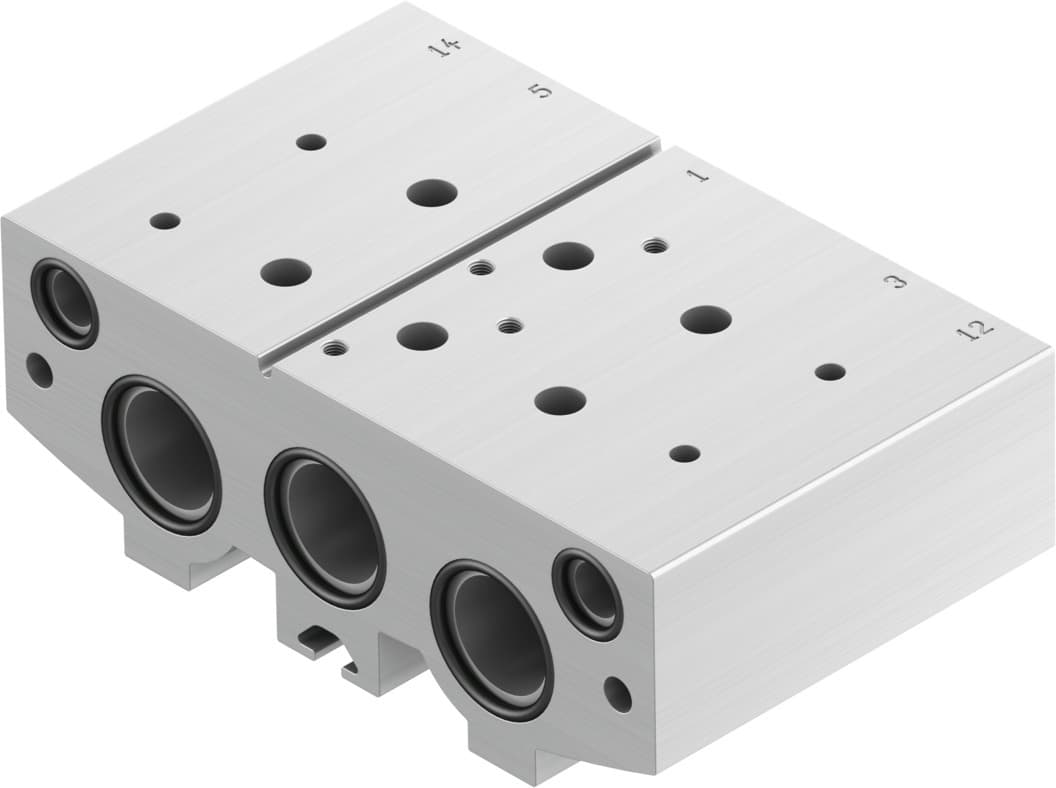

vabm-b10-20eee-g38-2
Selling Points
- 122 mm grid dimension for efficient space utilization.
- 2Optional mounting position for flexible installation.
- 3Moderate corrosion stress class (CRC 2) for durability.
- 43 pneumatic connections (G3/8) and 2 pilot air ports (G1/8).
- 5RoHS-compliant, made from wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 492g |
Type of mounting | With through-hole | Pilot air port 12 | G1/8 |
Pilot air port 14 | G1/8 | Pneumatic connection 1 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 5 | G3/8 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576489 |
Specifications may be subject to change without notice
