Product Model

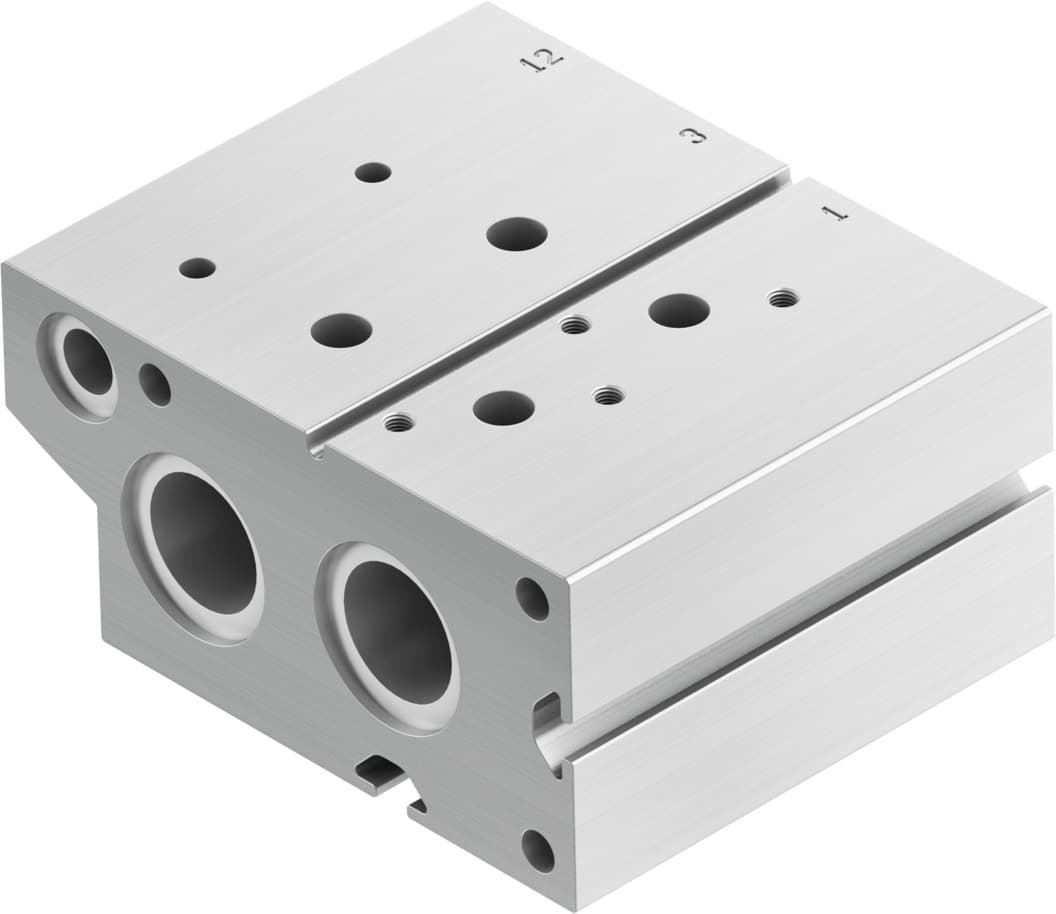

vabm-b10-20eee-g38-2-p3
Selling Points
- 1Compact Design: 22mm grid dimension for efficient space utilization.
- 2Versatile Mounting: Optional mounting position for flexible installation.
- 3Moderate Corrosion Resistance: CRC class 2 for moderate corrosion stress.
- 4High-Performance Connections: G3/8 pneumatic connections for reliable operation.
- 5RoHS-Compliant Materials: Made from RoHS-compliant wrought aluminium alloy for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 324g |
Type of mounting | With through-hole | Pilot air port 12 | G1/8 |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576490 |
Specifications may be subject to change without notice
