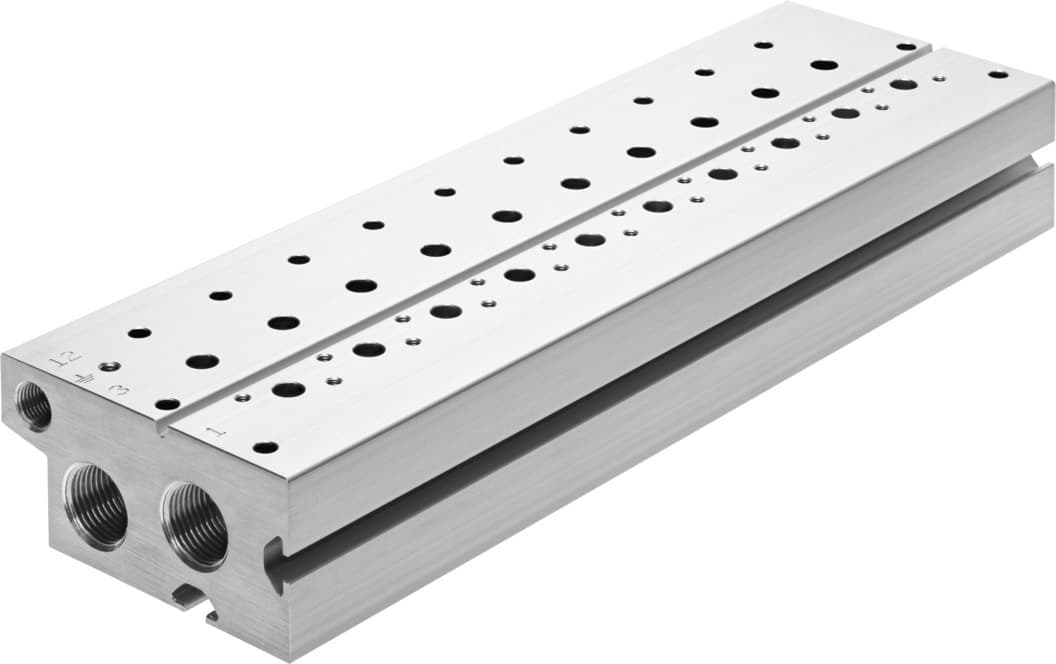

Product Model
vabm-b10-20e-g38-8-p3
Selling Points
- 1Compact Design: 22 mm grid dimension for space-efficient installations.
- 2Versatile Mounting: Optional mounting position for flexible setup.
- 3High Corrosion Resistance: Moderate corrosion stress class (CRC 2) for reliable performance.
- 4Robust Construction: Made from RoHS-compliant wrought aluminum alloy for durability.
- 5Precise Connections: G1/8 pilot air port and G3/8 pneumatic connections ensure accurate control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1200g |
Type of mounting | With through-hole | Pilot air port 12 | G1/8 |
Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576447 |
Specifications may be subject to change without notice
