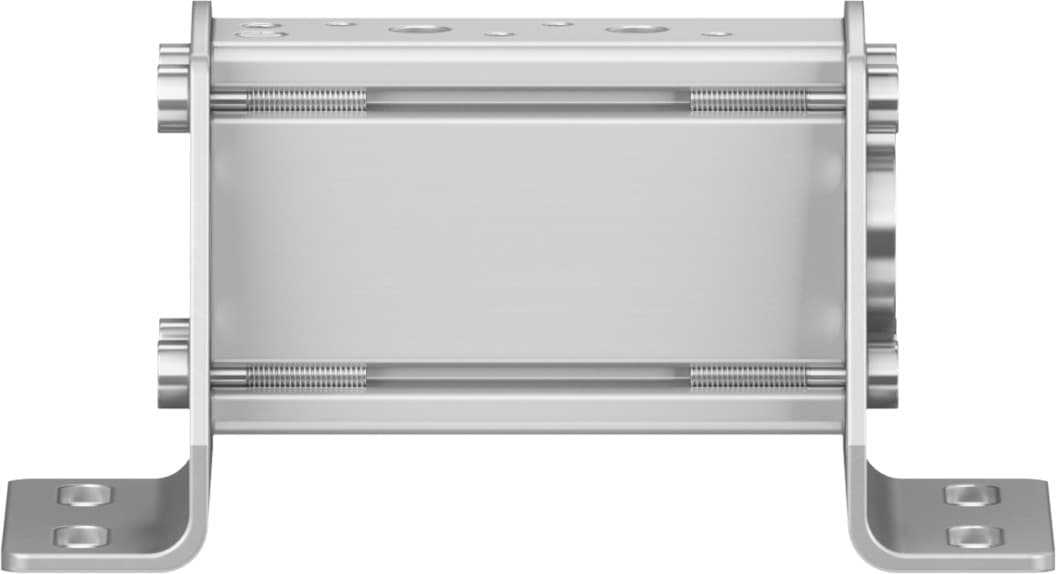

Product Model
vabm-b10-20-g38-2-p53
Selling Points
- 1The VABM-B10-20-G38-2-P53 features a compact grid dimension of 22 mm, making it perfect for space-constrained environments.
- 2Equipped with G3/8 pneumatic connections, ensuring seamless integration with your existing pneumatic systems.
- 3Classified as CRC 2, offering moderate corrosion resistance, suitable for a variety of industrial environments.
- 4Comes with a mounting bracket, allowing for versatile installation options to meet your specific needs.
- 5Conforms to RoHS standards, ensuring the product is environmentally friendly and compliant with regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 226g |
Type of mounting | With mounting bracket | Pneumatic connection 1 | G3/8 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576363 |
Specifications may be subject to change without notice
