Product Model

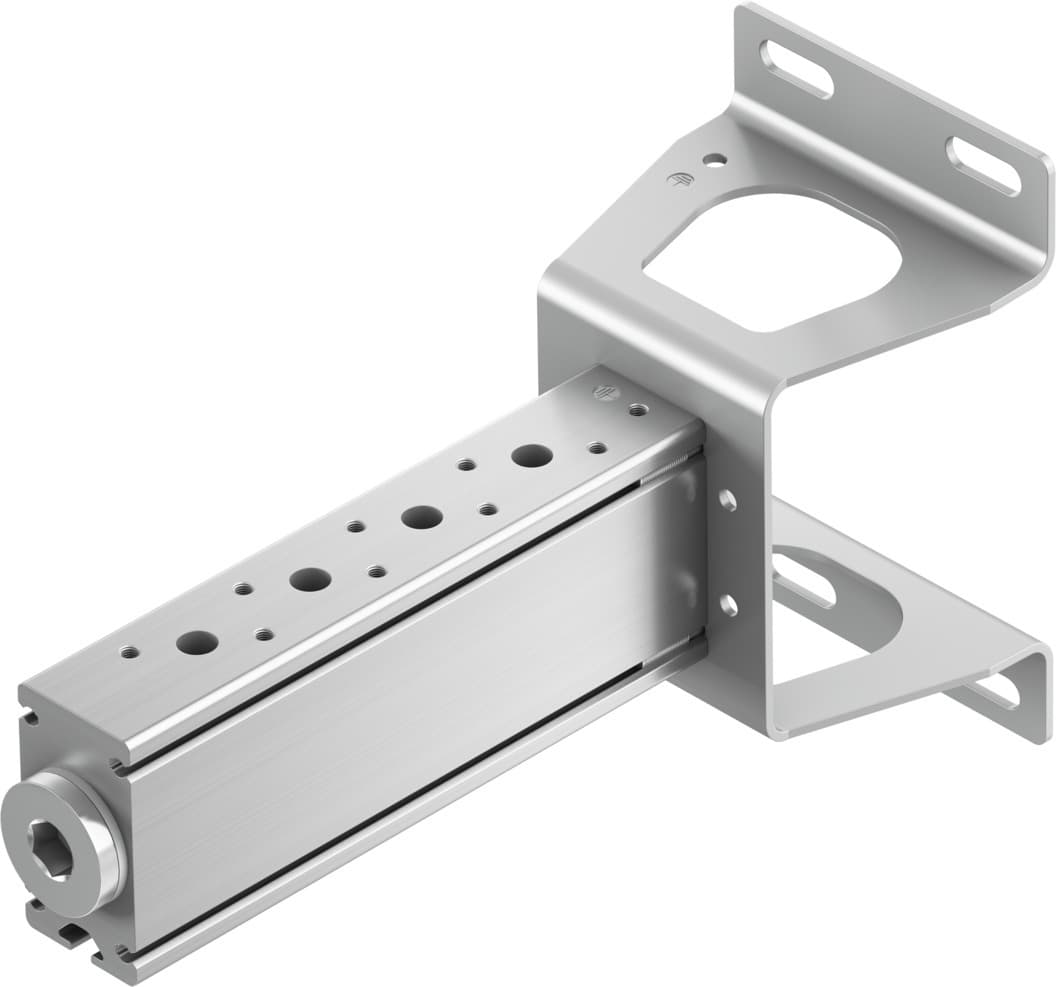

vabm-b10-20-g38-4-p53-e
Selling Points
- 122mm grid dimension for precise assembly.
- 2Moderate corrosion resistance class (CRC 2).
- 3Supports up to 4 valve positions.
- 4Compatible with VDMA24364-B1/B2-L standards.
- 5Made from RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 324g |
Type of mounting | With mounting bracket | Pneumatic connection 1 | G3/8 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576416 |
Specifications may be subject to change without notice
