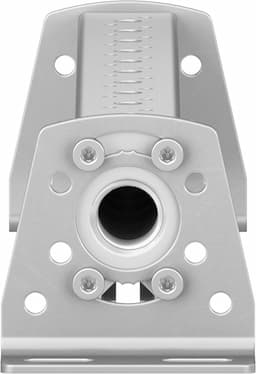

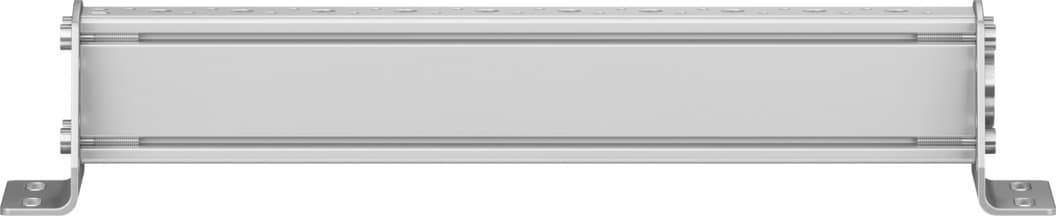

Product Model
vabm-b10-20-n38-10-p53
Selling Points
- 122mm Grid Dimension: Compact and precise design for efficient pneumatic systems.
- 2Optional Mounting Position: Flexible installation options to suit various setup requirements.
- 310 Max Valve Positions: Supports multiple valve configurations for complex pneumatic networks.
- 4Moderate Corrosion Stress Resistance (CRC 2): Robust against moderate corrosion, ensuring long-lasting performance.
- 5RoHS-Compliant and Wrought Aluminium Alloy: Meets environmental standards and offers durable material construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 10 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 563g |
Type of mounting | With mounting bracket | Pneumatic connection 1 | 3/8 NPT |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576383 |
Specifications may be subject to change without notice
