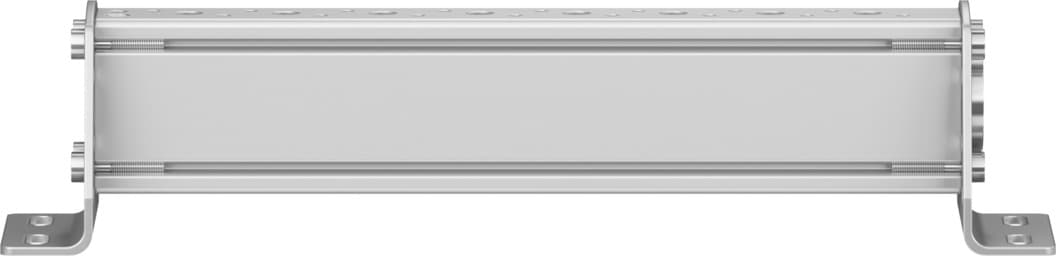

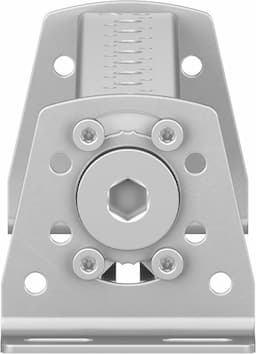

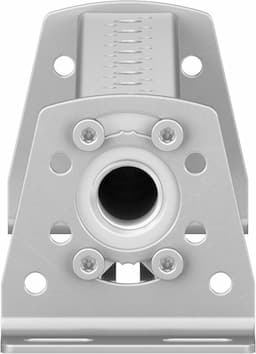

Product Model
vabm-b10-20-n38-8-p53
Selling Points
- 1Compact Design: 22mm grid dimension for space-efficient installations.
- 2High Valve Positions: Supports up to 8 valve positions for complex pneumatic systems.
- 3Corrosion Resistance: Moderate corrosion stress resistance (CRC class 2).
- 4Versatile Mounting: Optional mounting position and via mounting bracket for flexibility.
- 5RoHS Compliance: Meets RoHS standards, ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 479g |
Type of mounting | With mounting bracket | Pneumatic connection 1 | 3/8 NPT |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576381 |
Specifications may be subject to change without notice
