Product Model

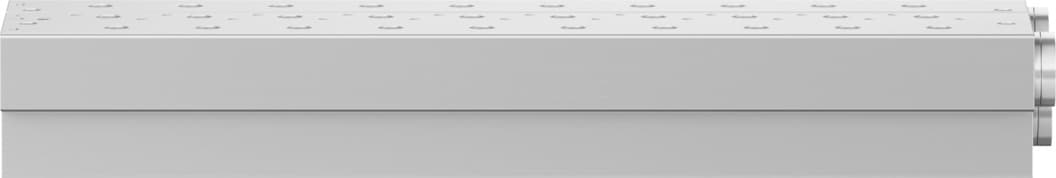

vabm-b10-20s-g14-10
Selling Points
- 1Made from wrought aluminum alloy for durability and corrosion resistance.
- 2Optional mounting positions for versatile installation.
- 3Supports up to 10 valve positions for precise pneumatic control.
- 4RoHS-compliant and meets VDMA24364-B1/B2-L standards.
- 5Compact size with dimensions of 22 mm grid dimension.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 10 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1108g |
Type of mounting | With through-hole | Pneumatic connection 1 | G1/4 |
Pneumatic connection 3 | G1/4 | Pneumatic connection 5 | G1/4 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576425 |
Specifications may be subject to change without notice
