Product Model

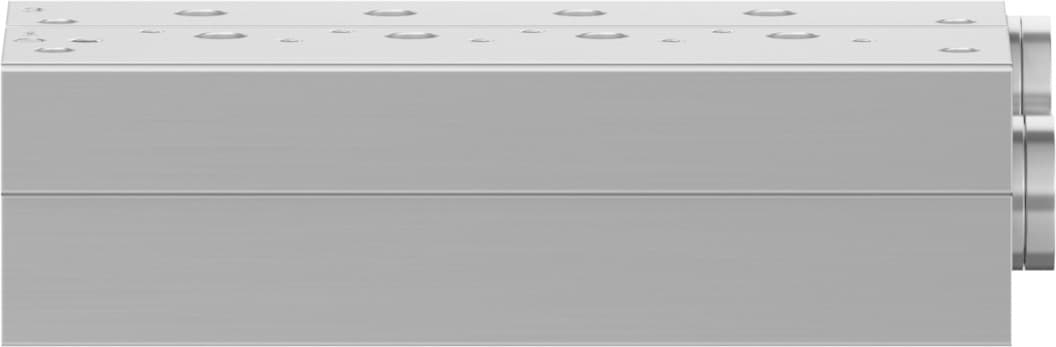

vabm-b10-20s-g14-4-p3
Selling Points
- 1Compact design with 4 G1/4 outlets for efficient pneumatic system integration.
- 2RoHS compliant, ensuring environmental safety and compliance.
- 3Moderate corrosion resistance class (CRC) 2 for reliable performance.
- 4Compatible with Festo 3/2-Way VUVS Series Solenoid Valves and VTUS Series Valve Manifold Assemblies.
- 5Easy mounting with through-hole type, suitable for various mounting positions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 441g |
Type of mounting | With through-hole | Pneumatic connection 1 | G1/4 |
Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 576467 |
Specifications may be subject to change without notice
