Product Model

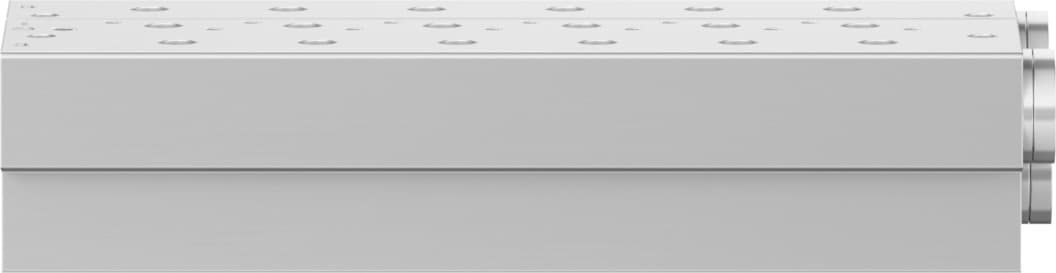

vabm-b10-20s-g14-5
Selling Points
- 1Compact Design: 22mm grid dimension for efficient use in tight spaces.
- 2Versatile Mounting: Optional mounting position for flexible installation.
- 3High Corrosion Resistance: Moderate corrosion stress class (CRC 2) for durability.
- 4Precise Valve Control: Supports up to 5 valve positions for precise pneumatic control.
- 5Durable Materials: Made from RoHS-compliant wrought aluminum alloy for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 5 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 630g |
Type of mounting | With through-hole | Pneumatic connection 1 | G1/4 |
Pneumatic connection 3 | G1/4 | Pneumatic connection 5 | G1/4 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576420 |
Specifications may be subject to change without notice
