Product Model

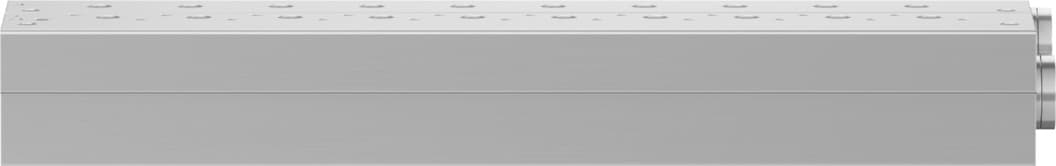

vabm-b10-20s-n14-10-p3
Selling Points
- 122MM Grid Dimension: Ensures precise and efficient pneumatic connections.
- 2Optional Mounting Position: Flexible installation options for various applications.
- 310 Max. Valve Positions: Supports complex pneumatic systems with multiple valves.
- 4Moderate Corrosion Stress Resistance: Durable against moderate corrosion stress (CRC class 2).
- 5RoHS-Compliant Materials: Meets environmental standards with wrought aluminium alloy material manifold rail.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 10 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 922g |
Type of mounting | With through-hole | Pneumatic connection 1 | 1/4 NPT |
Pneumatic connection 3 | 1/4 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 576485 |
Specifications may be subject to change without notice
