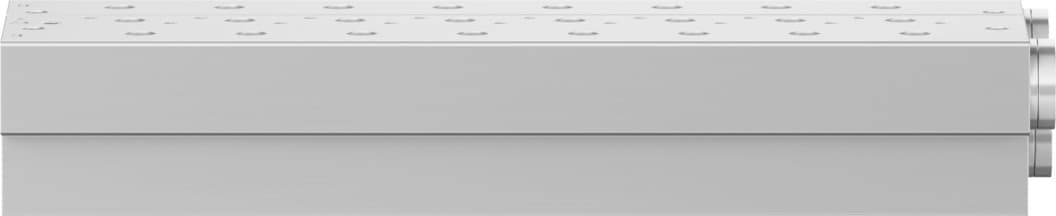

Product Model
vabm-b10-20s-n14-7
Selling Points
- 122mm Grid Dimension: Compact design for efficient system integration.
- 2Optional Mounting Position: Flexibility in installation to suit various applications.
- 37 Valve Positions: High capacity for complex pneumatic control systems.
- 4Moderate Corrosion Resistance: Robust against moderate corrosion stress, ensuring durability.
- 5RoHS-Compliant Materials: Environmentally friendly, made from wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 22mm | Mounting position | Any |
Max. no. of valve positions | 7 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 821g |
Type of mounting | With through-hole | Pneumatic connection 1 | 1/4 NPT |
Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 5 | 1/4 NPT |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 576434 |
Specifications may be subject to change without notice
