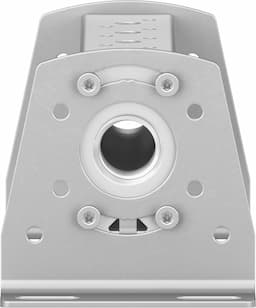

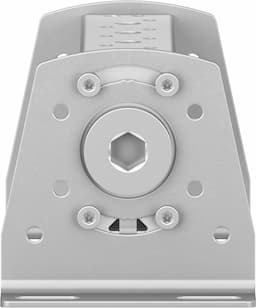

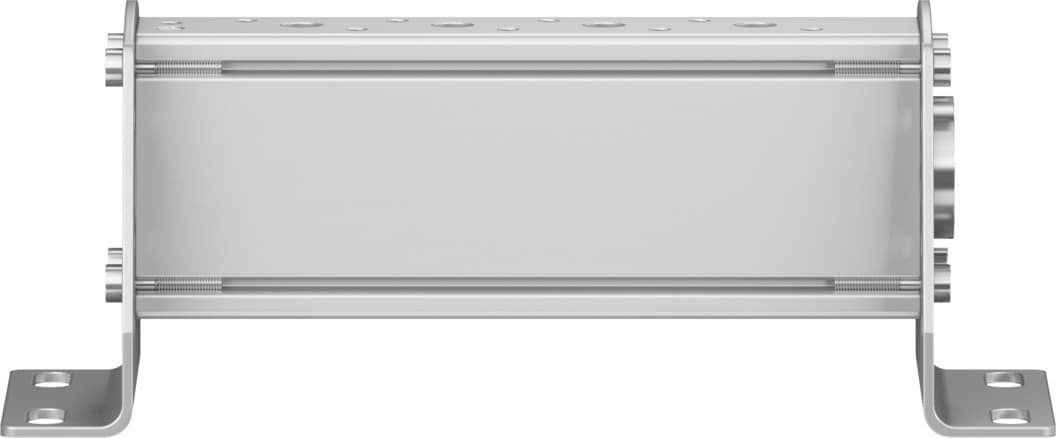

Product Model
vabm-b10-25-g12-3-p53
Selling Points
- 1Efficient Pneumatic Supply: Designed for precise control in pneumatic systems.
- 2Corrosion Resistance: Meets CRC 2 - Moderate corrosion stress standards.
- 3Compact Design: Grid dimension of 27.5 mm for space-saving installations.
- 4Easy Mounting: Optional mounting positions and via mounting bracket for flexibility.
- 5RoHS Compliant: Made from wrought aluminum alloy, conforming to RoHS regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 27.5mm | Mounting position | Any |
Max. no. of valve positions | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 340g |
Type of mounting | With mounting bracket | Pneumatic connection 1 | G1/2 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 8026220 |
Specifications may be subject to change without notice
