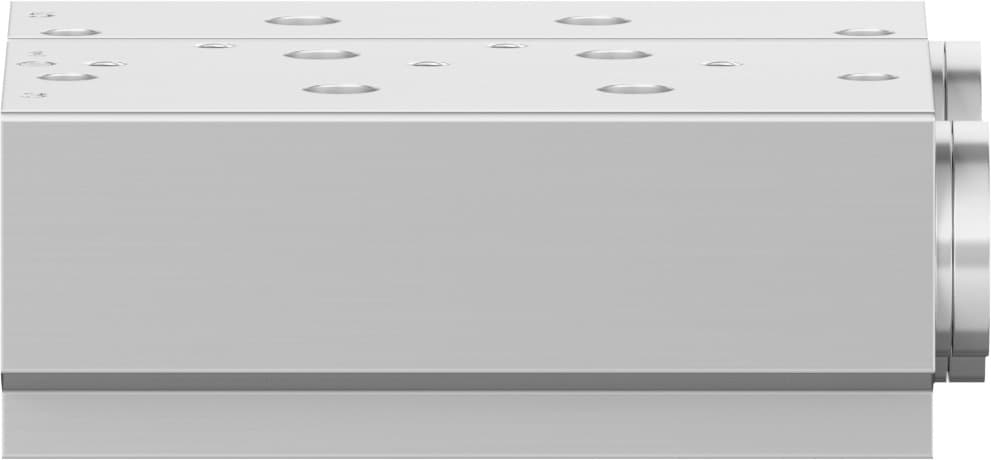

Product Model
vabm-b10-25s-g38-2
Selling Points
- 1Compact Design: 27.5 mm grid dimension for efficient use in various applications.
- 2Versatile Mounting: Optional mounting position for flexible installation options.
- 3Robust Construction: Made from RoHS-compliant wrought aluminium alloy for durability.
- 4Moderate Corrosion Resistance: Classified as CRC 2 for moderate corrosion stress.
- 5Easy Pneumatic Connections: G3/8 connections on ports 1, 3, and 5 for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 27.5mm | Mounting position | Any |
Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 438g |
Type of mounting | With through-hole | Pneumatic connection 1 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 5 | G3/8 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 8026261 |
Specifications may be subject to change without notice
