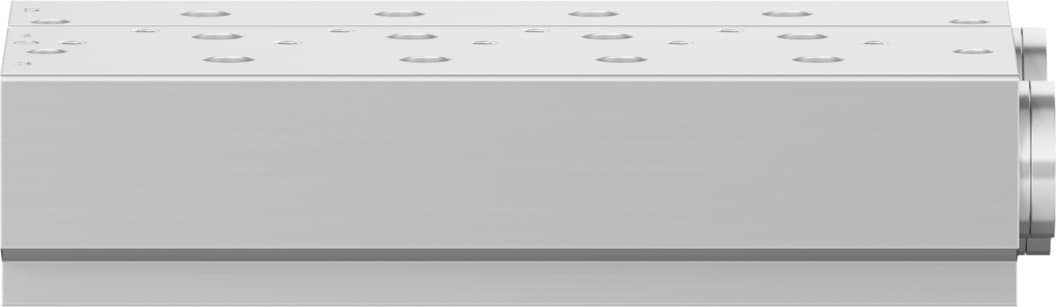

Product Model
vabm-b10-25s-g38-4
Selling Points
- 127.5 mm grid dimension for space-efficient installations.
- 2Optional mounting positions for flexible setup.
- 3Moderate corrosion stress (CRC 2) for durability.
- 44 G3/8 pneumatic connections for versatile valve configurations.
- 5Made from RoHS-compliant wrought aluminum alloy for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 27.5mm | Mounting position | Any |
Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 720g |
Type of mounting | With through-hole | Pneumatic connection 1 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 5 | G3/8 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 8026263 |
Specifications may be subject to change without notice
