Product Model

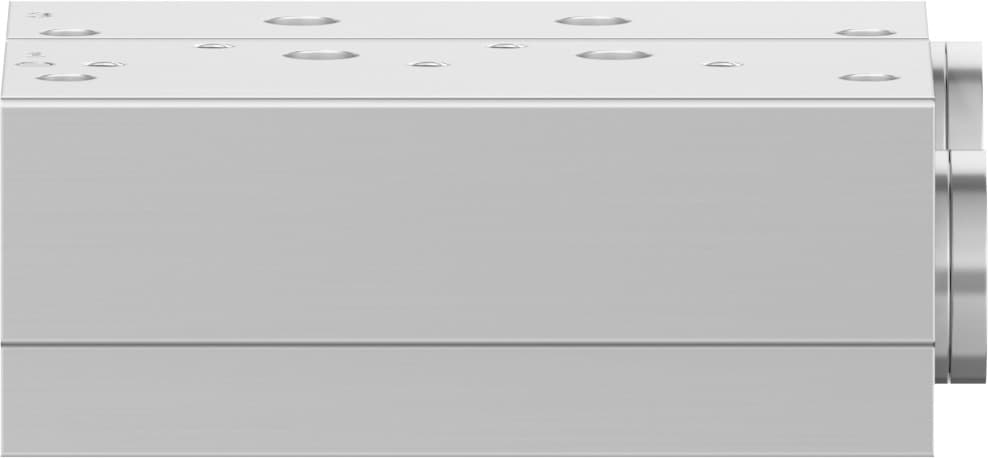

vabm-b10-25s-n38-2-p3
Selling Points
- 127.5 mm grid dimension for space-efficient installations.
- 2Optional mounting position for versatile application integration.
- 3Made from RoHS-compliant wrought aluminum alloy for durability.
- 43/8 NPT connections for easy integration with pneumatic systems.
- 5CRC class 2 for moderate corrosion stress environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 27.5mm | Mounting position | Any |
Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 369g |
Type of mounting | With through-hole | Pneumatic connection 1 | 3/8 NPT |
Pneumatic connection 3 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8026306 |
Specifications may be subject to change without notice
