Product Model

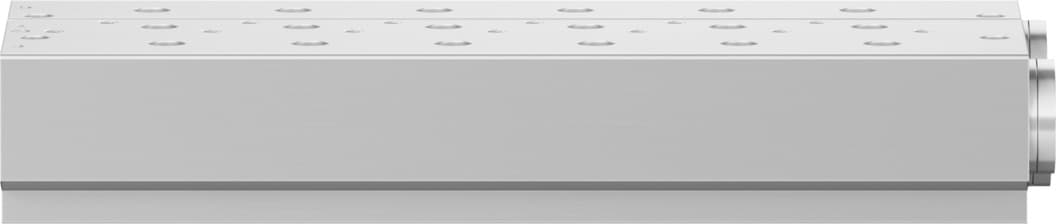

vabm-b10-25s-n38-6
Selling Points
- 1Compact Design: 27.5mm grid dimension for efficient space utilization.
- 2Versatile Mounting: Optional mounting position for flexible installation.
- 3High Valve Capacity: Supports up to 6 valve positions for complex pneumatic systems.
- 4Corrosion Resistance: Moderate corrosion stress resistance class CRC 2.
- 5Compliant Materials: RoHS-compliant and made from wrought aluminium alloy for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 27.5mm | Mounting position | Any |
Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1002g |
Type of mounting | With through-hole | Pneumatic connection 1 | 3/8 NPT |
Pneumatic connection 3 | 3/8 NPT | Pneumatic connection 5 | 3/8 NPT |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 8026274 |
Specifications may be subject to change without notice
