Product Model

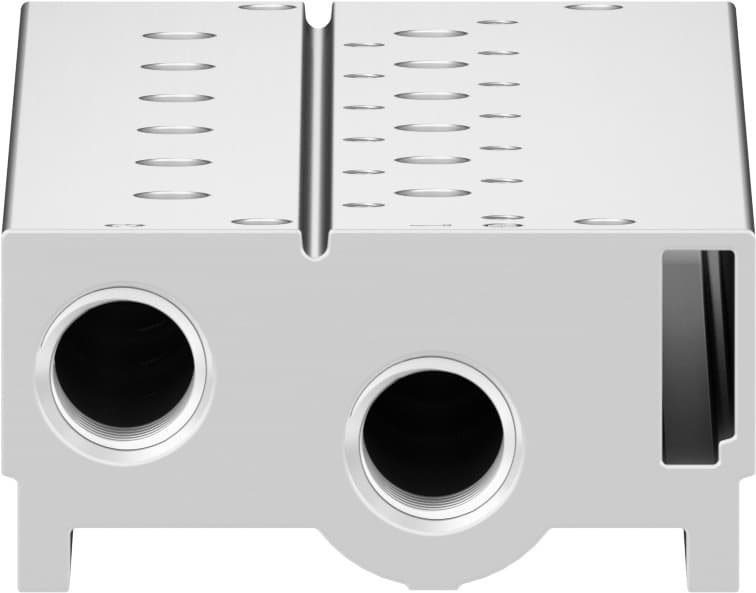

vabm-b10-25s-n38-6-p3
Selling Points
- 1Compact Design: 27.5 mm grid dimension for space-efficient installation.
- 2Flexible Mounting: Optional mounting position for versatile integration.
- 3Robust Construction: Made from RoHS-compliant wrought aluminum alloy.
- 4Reliable Connections: 3/8 NPT pneumatic connections for secure valve operation.
- 5Conformity and Warranty: LABS (PWIS) conformity and 2-year warranty for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 27.5mm | Mounting position | Any |
Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 845g |
Type of mounting | With through-hole | Pneumatic connection 1 | 3/8 NPT |
Pneumatic connection 3 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8026310 |
Specifications may be subject to change without notice
