Product Model

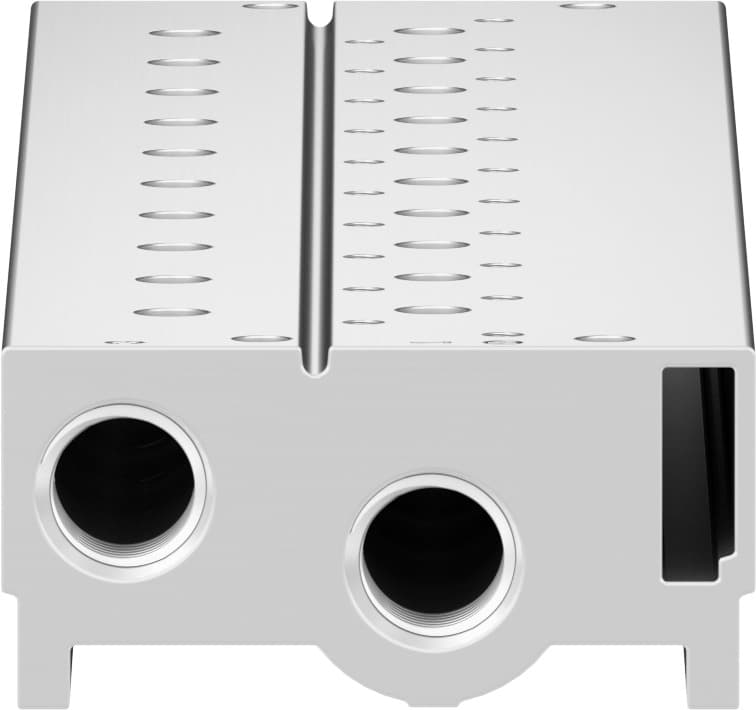

vabm-b10-25s-n38-9-p3
Selling Points
- 127.5mm grid dimension for precise control.
- 2Optional mounting position for flexible installation.
- 39 max valve positions for multi-functionality.
- 4Moderate corrosion stress resistance (CRC 2).
- 5RoHS-compliant and made from wrought aluminium alloy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 27.5mm | Mounting position | Any |
Max. no. of valve positions | 9 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1202g |
Type of mounting | With through-hole | Pneumatic connection 1 | 3/8 NPT |
Pneumatic connection 3 | 3/8 NPT | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8026313 |
Specifications may be subject to change without notice
