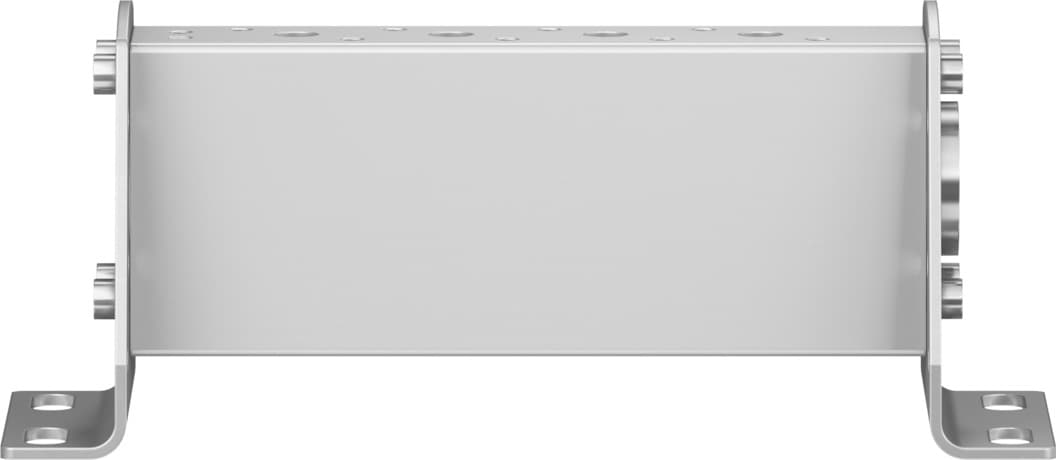

Product Model
vabm-b10-30-g34-3-p53
Selling Points
- 1The VABM-B10-30-G34-3-P53 features a compact grid dimension of 32 mm, making it perfect for space-constrained environments.
- 2With a corrosion resistance class of CRC 2, this manifold offers moderate corrosion stress, ensuring durability in harsh conditions.

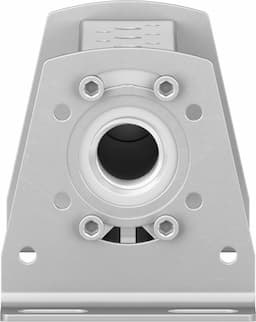

- 3The optional mounting position allows for flexible installation, while the pneumatic connection via G3/4 ports provides easy integration.
- 4Constructed from RoHS-compliant wrought aluminum alloy, this manifold ensures high-quality performance and compliance with environmental regulations.
- 5Designed to accommodate up to 3 valve positions, the VABM-B10-30-G34-3-P53 provides efficient control over pneumatic systems, enhancing overall system performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 32mm | Mounting position | Any |
Max. no. of valve positions | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 977g |
Type of mounting | With mounting bracket | Pneumatic connection 1 | G3/4 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 8026339 |
Specifications may be subject to change without notice
