Product Model

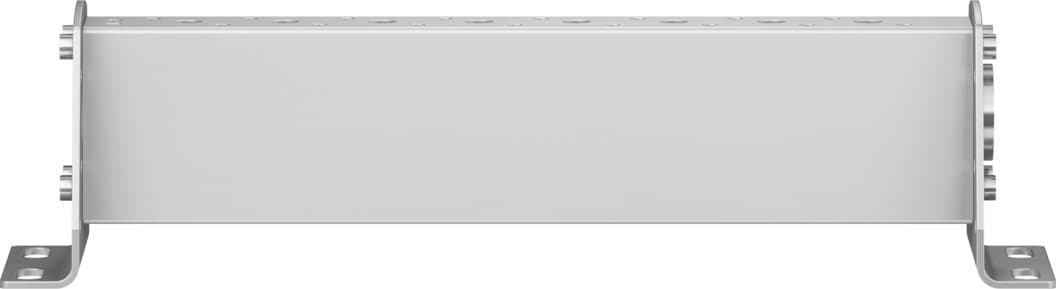

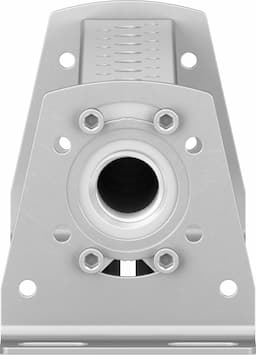

vabm-b10-30-g34-7-p53
Selling Points
- 1Moderate corrosion stress with CRC class 2.
- 2Optional mounting positions for versatile installation.
- 3G3/4" port 1 for seamless integration.
- 4RoHS-compliant wrought aluminium alloy manifold rail.
- 532 mm grid dimension, max 7 valve positions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 32mm | Mounting position | Any |
Max. no. of valve positions | 7 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1610g |
Type of mounting | With mounting bracket | Pneumatic connection 1 | G3/4 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 8026343 |
Specifications may be subject to change without notice
