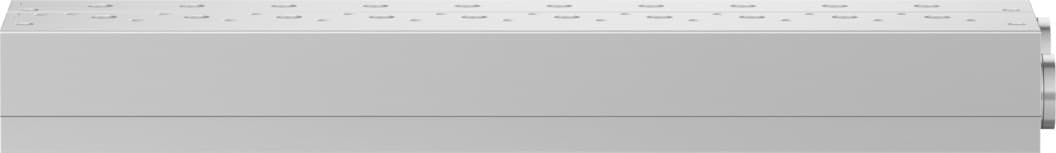

Product Model
vabm-b10-30s-g12-10-p3
Selling Points
- 110 Valve Positions: Supports complex pneumatic systems with up to 10 valve positions.
- 2Moderate Corrosion Resistance: Classified as CRC 2, ensuring moderate corrosion stress resistance.
- 3Optional Mounting Positions: Flexible installation options for various system configurations.
- 4Pneumatic Connections: Equipped with G1/2 connections for seamless integration with pneumatic components.
- 5RoHS-Compliant Materials: Made from RoHS-compliant wrought aluminum alloy for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 32mm | Mounting position | Any |
Max. no. of valve positions | 10 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 2413g |
Type of mounting | With through-hole | Pneumatic connection 1 | G1/2 |
Pneumatic connection 3 | G1/2 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8026421 |
Specifications may be subject to change without notice
