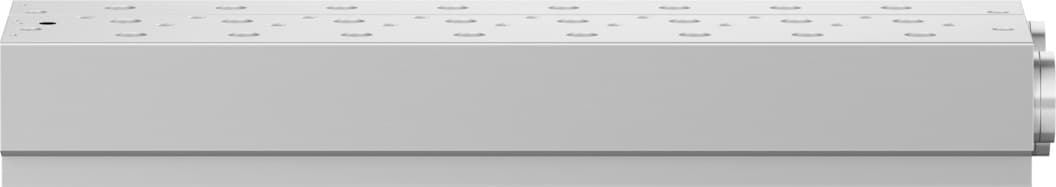

Product Model
vabm-b10-30s-g12-9
Selling Points
- 19 valve positions for versatile pneumatic control.
- 2Moderate corrosion resistance class CRC 2 for durability.
- 3Optional mounting positions for flexible installation.
- 432 mm grid dimension for precise layout.
- 5RoHS-compliant, made from wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 32mm | Mounting position | Any |
Max. no. of valve positions | 9 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 2539g |
Type of mounting | With through-hole | Pneumatic connection 1 | G1/2 |
Pneumatic connection 3 | G1/2 | Pneumatic connection 5 | G1/2 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 8026384 |
Specifications may be subject to change without notice
