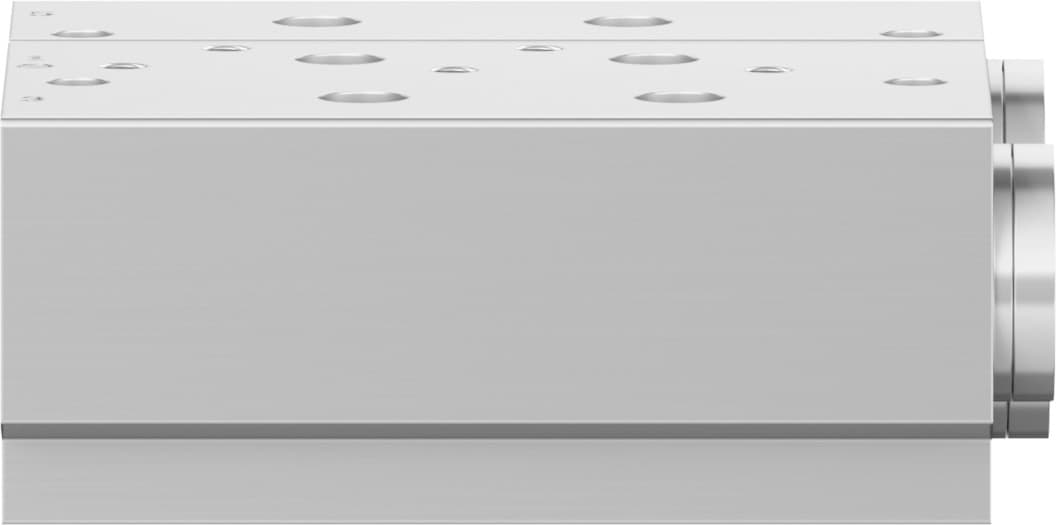

Product Model
vabm-b10-30s-n12-2
Selling Points
- 132mm grid dimension for precise pneumatic control.
- 2Optional mounting position for flexible installation.
- 32 valve positions for efficient fluid management.
- 4Moderate corrosion resistance class CRC 2 for durability in various environments.
- 5RoHS-compliant and made from wrought aluminium alloy for sustainability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 32mm | Mounting position | Any |
Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 759g |
Type of mounting | With through-hole | Pneumatic connection 1 | 1/2 NPT |
Pneumatic connection 3 | 1/2 NPT | Pneumatic connection 5 | 1/2 NPT |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 8026386 |
Specifications may be subject to change without notice
