Product Model
vabm-c8-12e-g14-32-pt-l
Selling Points

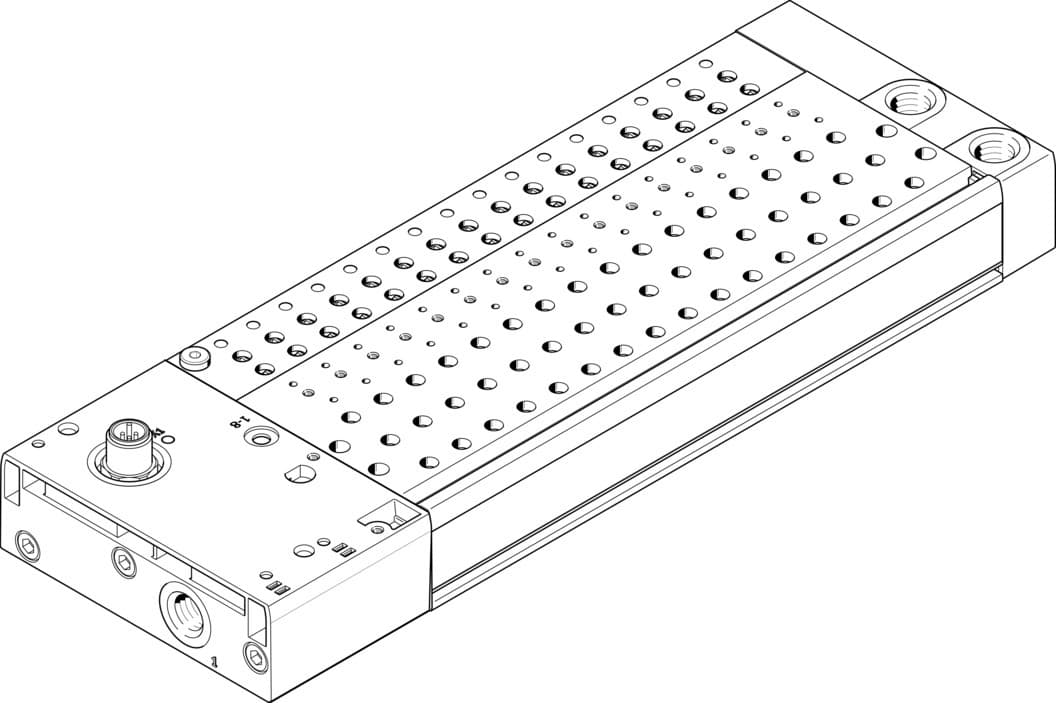

- 1The Festo VABM-C8-12E-G14-32-PT-L is a high-performance pneumatic valve manifold with a grid dimension of 12 mm, capable of handling up to 32 valve positions. Its compact design and robust construction make it ideal for various industrial applications.
- 2This manifold features CE marking and UKCA marking, ensuring compliance with relevant safety and regulatory standards. It also meets UK instructions for EMC and RoHS instructions, providing a reliable and environmentally friendly solution.
- 3The VABM-C8-12E-G14-32-PT-L boasts a corrosion resistance class of 0, indicating no corrosion stress. It is also LABS (PWIS) compliant, adhering to VDMA24364-B1/B2-L standards for quality and performance.
- 4With a maximum tightening torque of 0.6 Nm for valve mounting and 5 Nm for wall mounting, this manifold ensures secure and efficient installation. Its product weight is 1982 grams, making it easy to handle and integrate into your system.
- 5The manifold includes pneumatic connections of G1/4 size, providing flexibility and compatibility with various pneumatic systems. Its durable construction and precise engineering make it a reliable choice for demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 12mm | Max. no. of valve positions | 32 |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. tightening torque for valve mounting | 0.6Nm |
Max. tightening torque for wall mounting | 5Nm | Product weight | 1982g |
Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
Pneumatic connection 5 | G1/4 | Manufacturer ID | 1247986 |
Specifications may be subject to change without notice
