Product Model

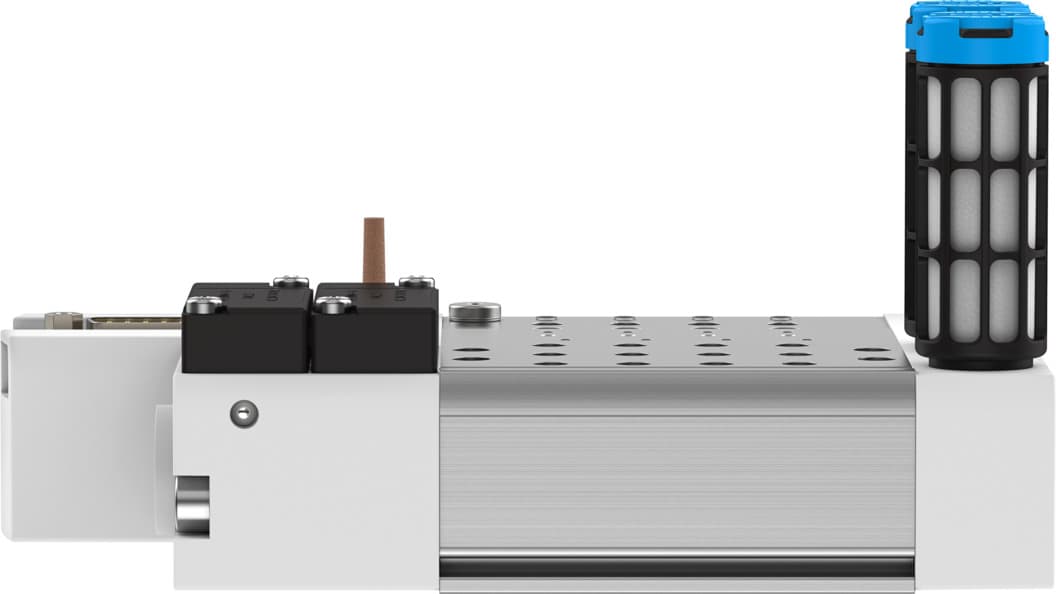

vabm-c8-12e-g14-4-m1-l
Selling Points
- 1The VABM-C8-12E-G14-4-M1-L manifold rail features a 12mm grid dimension, ensuring precise and efficient valve positioning in your pneumatic system.
- 2This manifold rail supports up to 4 valve positions, making it ideal for applications requiring multiple control points without compromising on space.
- 3With a corrosion resistance class of 0 - No corrosion stress, the VABM-C8-12E-G14-4-M1-L manifold rail is designed to withstand harsh environments and maintain its performance over time.
- 4The manifold rail has a maximum tightening torque of 0.6 Nm for valve mounting and 5 Nm for wall mounting, ensuring secure and reliable installation.
- 5Made from RoHS-compliant wrought aluminum alloy, the VABM-C8-12E-G14-4-M1-L manifold rail meets environmental standards and is suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 12mm | Max. no. of valve positions | 4 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for valve mounting | 0.6Nm | Max. tightening torque for wall mounting | 5Nm |
Product weight | 484g | Pneumatic connection 1 | G1/4 |
Pneumatic connection 3 | G1/4 | Pneumatic connection 5 | G1/4 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 1361865 |
Specifications may be subject to change without notice
