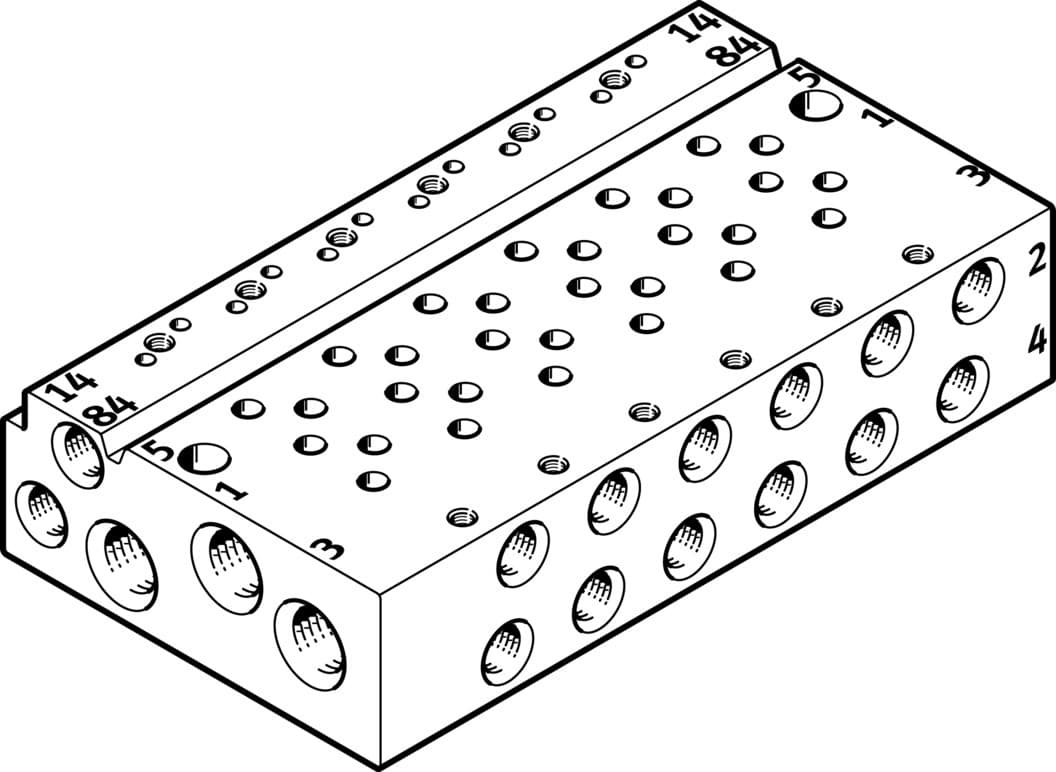

Product Model
vabm-l1-10aw-m7-6
Selling Points
- 1Compact Design: 10.5 mm width dimension for easy integration into tight spaces.
- 2High Valve Positions: Supports up to 16 valve positions for versatile control options.
- 3Robust Construction: Made from RoHS-compliant wrought aluminum alloy for durability.
- 4Pressure Compatibility: Operates within -0.09 MPa to 1 MPa or -0.9 bar to 10 bar pressure range.
- 5Easy Installation: M7 and M5 pneumatic connections simplify setup and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 10.5mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
Max. tightening torque for wall mounting | 1.5Nm | Product weight | 132g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | M7 | Pneumatic connection 2 | M5 |
Pneumatic connection 3 | M7 | Pneumatic connection 4 | M5 |
Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566550 |
Specifications may be subject to change without notice
