Product Model

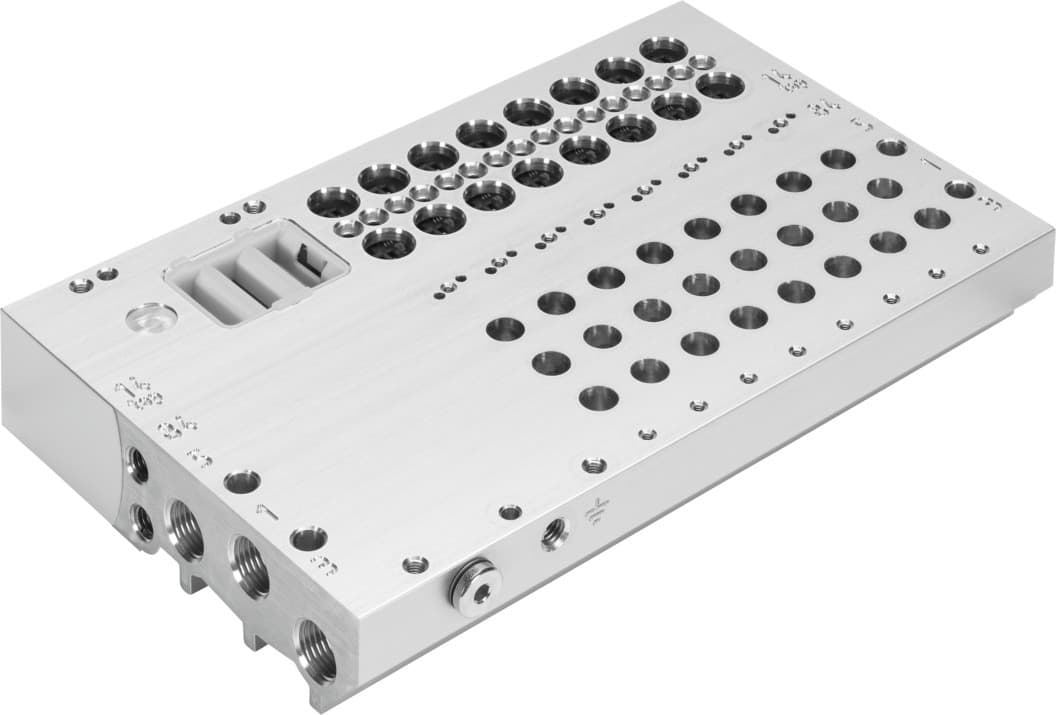

vabm-l1-10g-g18-20-gr
Selling Points
- 110.5mm Grid Dimension: Precise and versatile design for various pneumatic systems.
- 2Optional Mounting Position: Flexible installation options to suit different setup requirements.
- 320 Max Valve Positions: Supports up to 20 valve positions, enhancing system flexibility and efficiency.
- 4C UL us - Recognized (OL) Approval: Meets stringent safety standards for UL recognition.
- 5Moderate Corrosion Resistance: Constructed with wrought aluminum alloy, ensuring durability in moderate corrosion environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 10.5mm | Mounting position | Any |
Max. no. of valve positions | 20 | Certification | c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C 60°C | Product weight | 873g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/8 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 573432 |
Specifications may be subject to change without notice
