Product Model

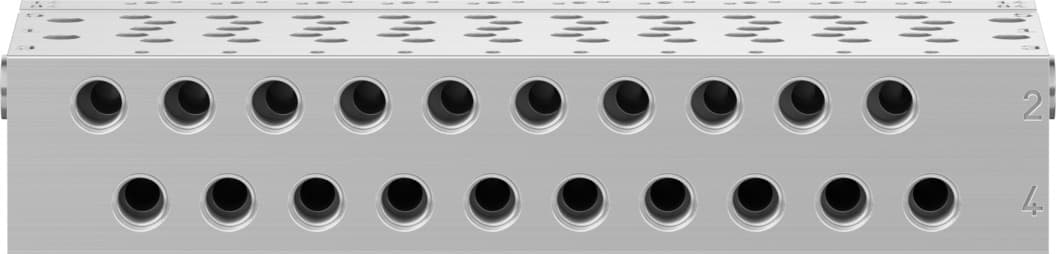

vabm-l1-10hw-g18-16
Selling Points
- 110.5mm Grid Dimension: Precise and efficient pneumatic control with a 10.5mm grid dimension.
- 2Optional Mounting Position: Versatile installation options to suit various industrial setups.
- 316 Max Valve Positions: Supports up to 16 valve positions for complex pneumatic systems.
- 4Moderate Corrosion Resistance: CRC 2 classification ensures durability in moderate corrosive environments.
- 5Wide Temperature Range: Operates between -20°C to 60°C, suitable for diverse industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 10.5mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 499g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M7 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M7 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566617 |
Specifications may be subject to change without notice
