Product Model

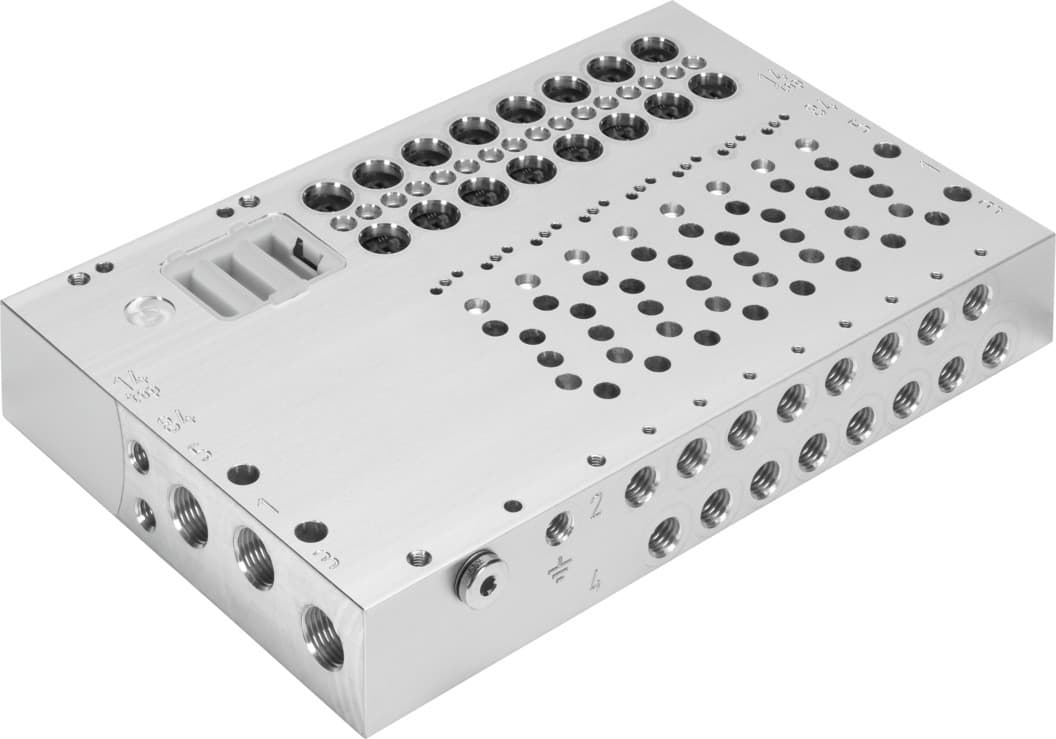

vabm-l1-10hw-g18-16-gr
Selling Points
- 110.5mm Grid Dimension: Precise and efficient pneumatic system setup.
- 216 Valve Positions: Supports multiple valve configurations for complex applications.
- 3Moderate Corrosion Resistance: CRC 2 classification ensures durability in various environments.
- 4Wide Operating Temperature Range: -20°C to 60°C for versatile use in different conditions.
- 5Compliant with C UL us and VDMA24364-B1/B2-L standards: Meets industry standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 10.5mm | Mounting position | Any |
Max. no. of valve positions | 16 | Certification | c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 6 according to ISO 14644-1 |
Storage temperature | -20°C 60°C | Product weight | 844g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M7 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M7 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 573442 |
Specifications may be subject to change without notice
