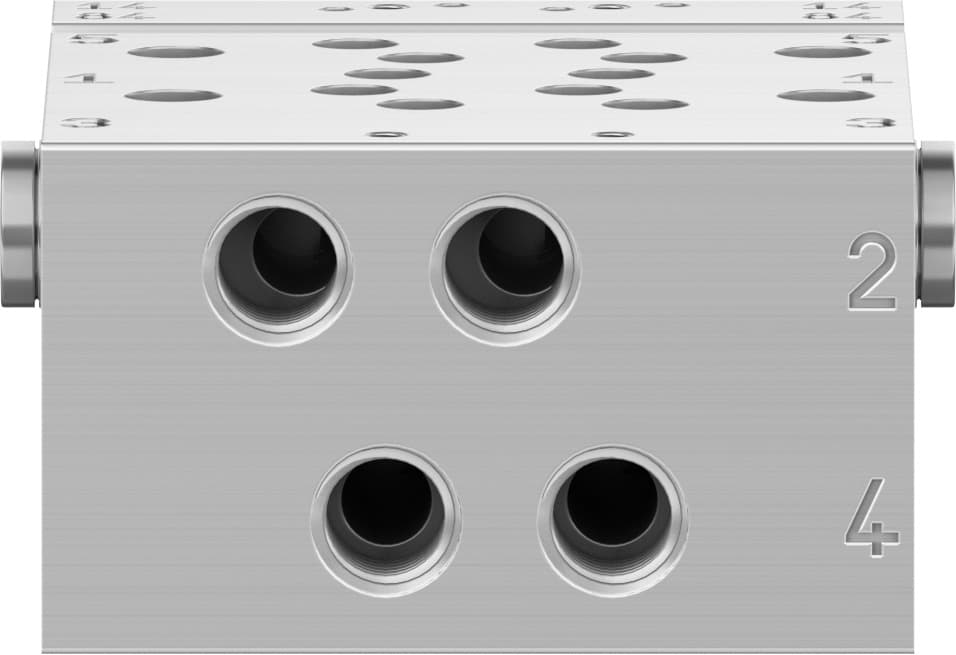

Product Model
vabm-l1-10hw-g18-2
Selling Points
- 1Equipped with G1/8 and M7 ports for reliable pneumatic connections.
- 2Made from wrought aluminum alloy for durability and resistance to corrosion.
- 3Meets Class 6 cleanroom standards according to ISO 14644-1 for use in sensitive environments.
- 4Suitable for manifold assemblies and sub-base valves, offering flexibility in system design.
- 5RoHS compliant and free from SVHC substances, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 10.5mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 107g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M7 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M7 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566606 |
Specifications may be subject to change without notice
