Product Model

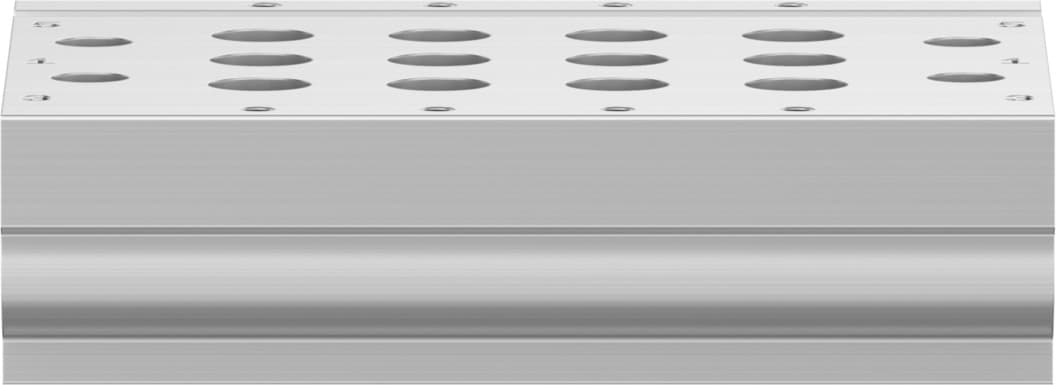

vabm-l1-10s-g18-4
Selling Points
- 1High-Quality Construction: Made from RoHS-compliant wrought aluminum alloy for durability and reliability.
- 2Versatile Pneumatic Connection: Equipped with G1/8 pneumatic connections for easy integration with various pneumatic systems.
- 3Corrosion Resistance: Designed to withstand moderate corrosion stress, ensuring long-term performance in harsh environments.
- 4Compact Design: Compact grid dimension of 10.5 mm, perfect for space-constrained industrial setups.
- 5Certified Compliance: Meets international standards including RCM, UL (US), and VDMA24364-B1/B2-L for cleanroom applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 10.5mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 96g |
Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/8 |
Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
Manufacturer ID | 566560 |
Specifications may be subject to change without notice
