Product Model

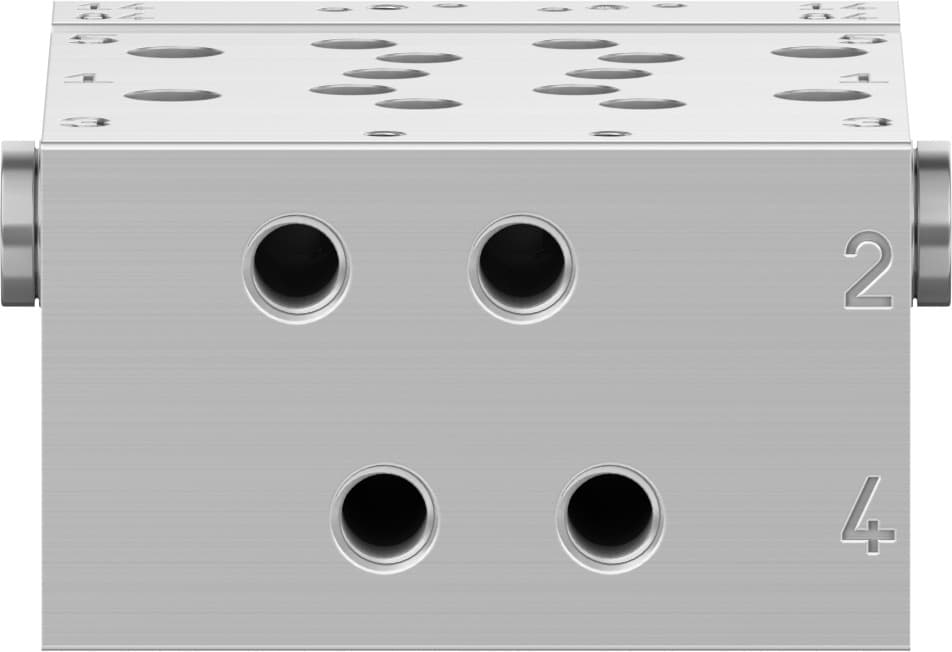

vabm-l1-10w-g18-2
Selling Points
- 1Corrosion Resistance Class 2: Moderate corrosion stress ensures durability in various environments.
- 2Through-Hole Mounting: Easy installation with through-hole mounting for versatile setup options.
- 3RoHS Compliant: Meets European Union's Restriction of Hazardous Substances (RoHS) standards for environmental safety.
- 4Wrought Aluminium Alloy: High-quality body material for strength and resistance to wear.
- 5Semi-In-Line and Sub-Base Valve Options: Compatible with various valve configurations for flexible system design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 10.5mm | Max. no. of valve positions | 16 |
Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
Max. tightening torque for wall mounting | 3Nm | Product weight | 107g |
Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M5 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M5 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566582 |
Specifications may be subject to change without notice
